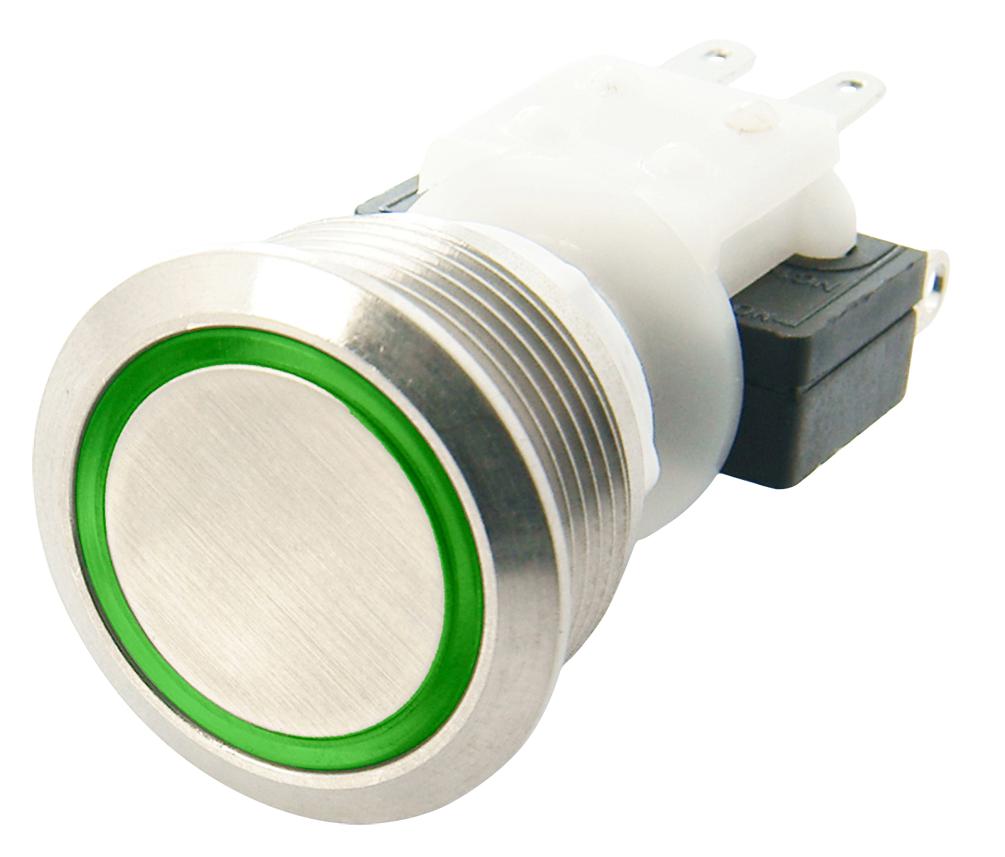

ITW-Switches H48M112G4044 Pushbutton Switch
The 19mm panel-sealed pushbutton switch series H48M features rugged electromechanical design with stainless steel or zinc alloy housings, available in momentary or maintained action. It includes LED illumination options such as center spot or ring, with multiple colors including green, yellow, blue, and red. Rated for 10A at 125/250 VAC and 10A at 28 VDC, this IP67 rated switch is ideal for outdoor controls, security, medical, and transportation applications. Easy to mount with sealed panel fitting, it provides reliable operation in harsh environments.
ITW-Switches H48M112G4044 Pushbutton Switch Specifications:
- Size: 19mm panel-mounted
- Housing Material: Stainless Steel or Zinc Alloy
- Seal Rating: IP67
- Action: Momentary or Maintained
- LED Colors: Green, Yellow, Blue, Red
- LED Forward Voltage: 2 V (Red, Amber, Yellow), 3.4 V (Green, Blue, White)
- Contact Rating: 10A @ 125/250 VAC, 10A @ 28 VDC
- Operating Force: 5.2N (520 grams)
- Button Travel: 0.09 inches (2.3 mm)
- Panel Thickness: 0.020 to 0.177 inches (0.5–4.5 mm)
- Operating Temperature: -40°C to +85°C (momentary), -40°C to +65°C (maintained)
- Maximum Torque: 10 inch pounds
- Dielectric Strength: 1000 VAC
- Contact Resistance: 50 mΩ max
- Cycle Life: 500,000 (momentary), 50,000 (maintained)
Buy the ITWSwitch H48M – Reliable Pushbutton Switches for Industrial Applications
Purchase the durable and reliable pushbutton switch online today. Designed for harsh environments, this sealed IP67 switch features LED illumination, robust metal housing, and easy mounting. Suitable for outdoor controls, security systems, medical equipment, and transportation applications. With a rated 10A at 125/250 VAC and 28 VDC, it offers excellent performance and longevity. Order now to enhance your automation and control systems with this high-quality, easy-to-install switch built for demanding industrial settings.
Get ITWSwitch H48M today—built for precision and long-lasting durability, perfect for outdoor and industrial control systems.
Frequently Asked Questions
Where can I buy ITW-Switches H48M112G4044?
You can click on the BUY or RFQ button to purchase H48M112G4044 from an authorized ITW-Switches distributor.
How do I troubleshoot issues or seek technical support for part H48M112G4044?
You can download the H48M112G4044 datasheet or visit the ITW-Switches website for support.
Who is the manufacturer of H48M112G4044?
ITW-Switches
