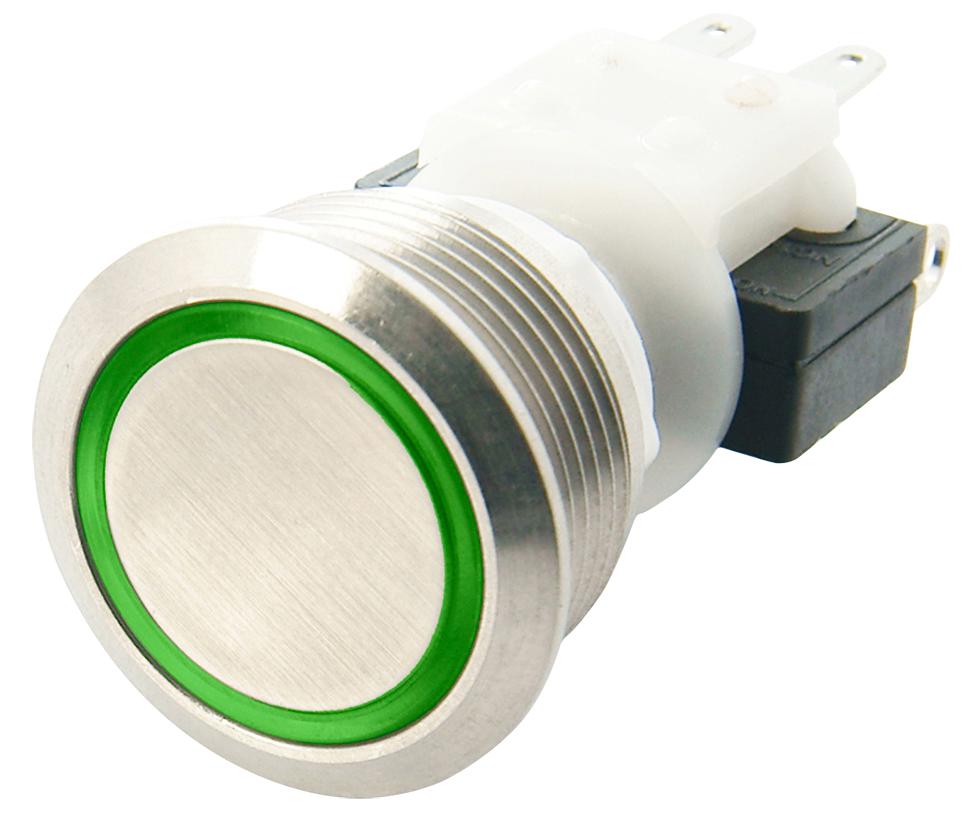

ITW-Switches H48M212G4044 Pushbutton Switch
The H48M series is a rugged 19mm panel-sealed pushbutton switch rated for 10 Amps, suitable for diverse industrial, transportation, security, and medical applications. These electromechanical switches feature stainless steel or zinc alloy housings with options for momentary or maintained actions, and illumination with center spot or ring lighting in multiple LED colors. Designed for outdoor control panels, security equipment, medical devices, food processing, and transportation machinery, they are rated IP67 for maximum sealing. Certifications include RoHS compliance, UL, and CSA approval, ensuring durability and safety in demanding environments.
ITW-Switches H48M212G4044 Pushbutton Switch Specifications:
- Size: 19mm panel mounting
- Current Rating: 10A at 125/250 VAC, 10A at 28 VDC
- Sealing: Panel sealed to IP67 with sealing o-ring
- Housing Material: Stainless steel or zinc alloy
- Action: Momentary or maintained
- Illumination: Center spot or ring with LED colors (Green, Red, Blue, Yellow)
- Operating Temperature: -13°F to +185°F (-25°C to +85°C)
- Button Travel: 0.09 inches (2.3 mm)
- Operating Force: 5.2N (520 grams)
- Panel Thickness: 0.020 to 0.177 inches (0.5 to 4.5 mm)
- Contact Resistance: Max 50 mΩ
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: Not specified but typically high
- Switch Life: 500,000 cycles (momentary), 50,000 cycles (maintained)
Buy the IndustrialSwitch 212G4044 – Reliable Pushbutton for Industrial Applications
Order the durable, high-quality Pushbutton Switch designed for demanding industrial and outdoor applications. Featuring stainless steel or zinc alloy housings, momentary or maintained operation, and IP67 sealing, it ensures reliability and safety. Suitable for security, medical, food processing, and transportation equipment, its high current rating and LED illumination options make it perfect for modern automation systems. Purchase online now to experience excellent performance, long-lasting durability, and ease of installation in your critical control systems.
Get IndustrialSwitch 212G4044 today—built for precision, durability, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy ITW-Switches H48M212G4044?
You can click on the BUY or RFQ button to purchase H48M212G4044 from an authorized ITW-Switches distributor.
How do I troubleshoot issues or seek technical support for part H48M212G4044?
You can download the H48M212G4044 datasheet or visit the ITW-Switches website for support.
Who is the manufacturer of H48M212G4044?
ITW-Switches
