JST 02KR8MP Connector Socket
The KR Connector Series 2-position connector features a 2.0 mm pitch, suitable for interconnecting small electronic devices such as VCRs, cameras, and communication equipment. Made with tin-plated contact materials, it provides reliable electrical connections with a current rating of 1.0A and voltage of 100V. It supports wires up to AWG #26 and is RoHS compliant. Its compact design with a height of just 6.9 mm makes it ideal for tight spaces, and it can be mounted through-hole or as a surface-mount device. The connector ensures durability, environmental resistance, and easy assembly for various electronic applications.
JST 02KR8MP Connector Socket Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10mΩ max, after environmental testing/20mΩ max
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061 (AWG #28, #26)
- Conductor: Tin-coated, 7 strands, surface mount and through-hole variants
- Panel thickness: 0.8 to 1.6mm
- Insulation O.D.: 0.9 to 1.0mm
- Material: Phosphor bronze, gray UL94V-0
- RoHS compliant, environmentally friendly design
- Color: Green
- Compatible with PH crimp style connectors

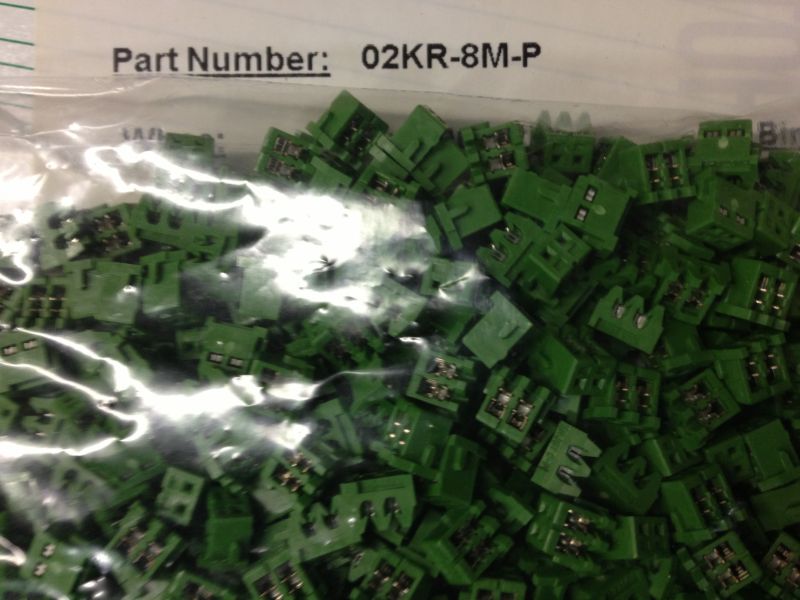

Buy the JST Series KR 2.0mm Connector: 02KR8MP
Purchase the JST Series KR 2.0mm connector online today and benefit from its compact design, reliable electrical performance, RoHS compliance, and corrosion-resistant tin-plated contacts. Ideal for small electronic devices like cameras, VCRs, and communication systems, this connector provides secure connections for wires up to AWG #26. Its versatile mounting options include through-hole and surface-mount configurations, making it suitable for a wide range of applications. Ensure your electronic projects are efficient, durable, and professionally assembled by ordering now.
Order your JST Series KR 2.0mm connector today and ensure reliable, compact interconnections for your electronic projects.
Frequently Asked Questions
Where can I buy JST 02KR8MP?
You can click on the BUY or RFQ button to purchase 02KR8MP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02KR8MP?
You can download the 02KR8MP datasheet or visit the JST website for support.
Who is the manufacturer of 02KR8MP?
JST
