JST S02BXASS1LFSN Connector Header
The side entry connector header from the XA series features a 2-position configuration with a voltage rating of 250V. Designed for right-angle mounting, it supports a 2.5mm pitch and can carry up to 3A current. The connector is solder-type with a tin finish and a natural color, suitable for reliable electrical connections. Made from phosphor bronze and glass-filled PA 66, it conforms to RoHS standards. It includes features like a secure locking device, low insertion force, and is applicable for automatic mounting. Ideal for compact electronic devices and reliable connections.
JST S02BXASS1LFSN Connector Header Specifications:
- Current rating: 3A AC/DC (AWG #22, #20)
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max., after testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Applicable PCB thickness: 1.6mm
- Material: Phosphor bronze, tin-plated; PC board: Glass-filled PA 66, UL94V-0
- RoHS compliance: Yes
- Connector type: Solder-type, right-angle mounting
- Color: Natural
- Includes: Secure locking device, low insertion force, polarizing boss
- Temperature range: -25°C to +85°C
- Standards: Recognized E60389, Certified LR20812

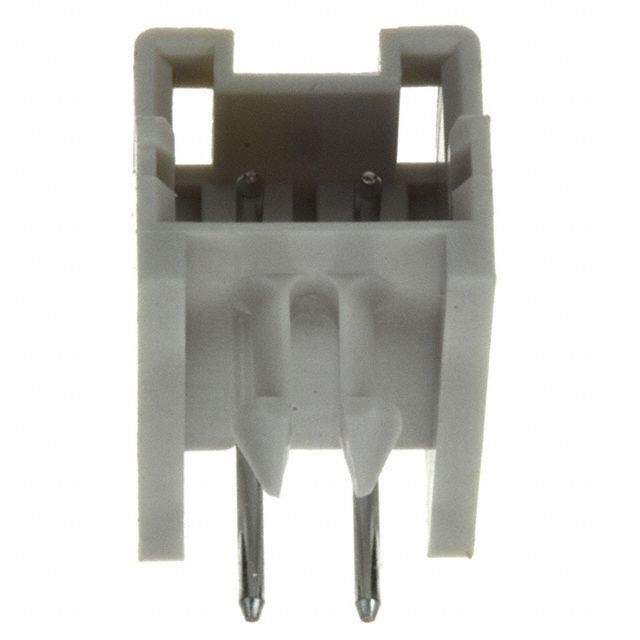

Buy the Buy JST XA Series Connector Part Number S02BXASS1LFSN Online
Secure your electronic devices with the JST XA series connector header, featuring a 2.5mm pitch, 250V voltage rating, and 3A current capacity. Designed for right-angle PCB mounting, this solder-type connector delivers solid electrical performance along with RoHS compliance. Made from durable phosphor bronze and glass-filled PA 66, it offers reliable locking, low insertion force, and polarizing features. Perfect for compact electronic applications requiring stable connections and easy assembly. Buy online today for convenient, high-quality installation in your manufacturing processes.
Order your JST XA Series connector with part number S02BXASS1LFSN today and ensure reliable, high-quality electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST S02BXASS1LFSN?
You can click on the BUY or RFQ button to purchase S02BXASS1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S02BXASS1LFSN?
You can download the S02BXASS1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of S02BXASS1LFSN?
JST
