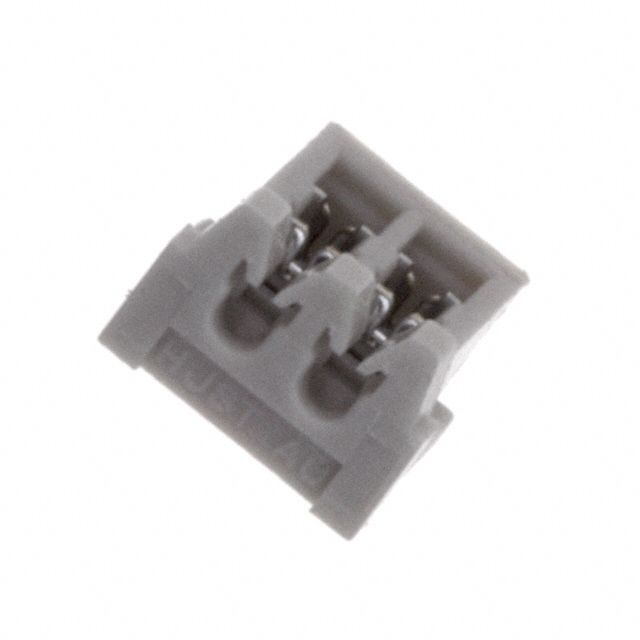

JST 02ZR3HP Connector Header
The ZR connector is a reliable 2-position, 1.5mm pitch header designed for electronic applications. It features twin U-slots, a 3-point grip, and distortion-resistant construction to ensure secure connections in harsh environments. Compatible with UL1571 wire with a tin coating, it supports 30 AWG wiring and a PC board thickness of 0.6 to 1.2mm or 1.6mm. Recognized under E60389 and certified LR20812, it has ratings of 0.7A at 50V and withstands a voltage of 500V AC. Its housing is made of glass-filled PA 66 with a natural finish, compliant with RoHS standards, ideal for industrial and electronic device wiring.
JST 02ZR3HP Connector Header Specifications:
- Current rating: 0.7A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Wire: UL1571, contact JST for other UL styles, tin-coated, 7 strands
- Wire insulation outer diameter: 0.7 to 0.8mm, contact JST for larger diameters
- Applicable PC board thickness: 0.6 to 1.2mm and 1.6mm
- Housing: Glass-filled PA 66, UL94V-0
- Standards: Recognized E60389, certified LR20812
- Dimensions: vary by model (e.g., 02ZR-3H-P 15mm length, 45mm width), quantity: 2000 units per box
- RoHS compliant, Tolerance: +0.05mm for centers, Tolerances: non-cumulative
Buy the Buy JST ZR Connector Part Number 02ZR3HP Online
Order the JST ZR Connector Header online today for your electronic projects or industrial wiring needs. This 2-position, 1.5mm pitch connector offers secure twin U-slot insulation displacement design, distortion resistance, and robust materials. With ratings supporting 0.7A at 50V and cable compatibility with 30 AWG wiring, it ensures reliable performance under demanding conditions. Made of glass-filled PA 66 and tin-plated contacts, it’s RoHS-compliant, certified, affordable, and available in bulk quantities, making it the ideal choice for engineers seeking quality and efficiency.
Get JST ZR Connector 02ZR3HP today—designed for reliable electrical connections in demanding environments with secure insulation and high durability.
Frequently Asked Questions
Where can I buy JST 02ZR3HP?
You can click on the BUY or RFQ button to purchase 02ZR3HP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02ZR3HP?
You can download the 02ZR3HP datasheet or visit the JST website for support.
Who is the manufacturer of 02ZR3HP?
JST
