JST 03FMS10SPTFLFSN FFC Connector
The FMS Series 3-position, 1.00 mm pitch SMT snap-in FFC connector offers a compact, reliable solution for connecting flexible flat cables in electronic devices. Designed for surface-mount technology, it features a snap-in mechanism that ensures secure and stable connections, even in vibration-prone environments. The connector's double-sided contact resilience and reinforced solder tabs enhance durability and ease of installation. With a height of 2.8mm and width of 6.3mm, it supports high-density packaging suitable for modern electronic assemblies, complying with RoHS standards.
JST 03FMS10SPTFLFSN FFC Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after testing/30mΩ
- Insulation resistance: 800MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable FFC: Conductors pitch 1.0mm, width 0.7mm, thickness 0.30±0.05mm
- Material: Phosphor bronze contacts, PPS housing
- Finish: Tin-plated contacts and solder tabs

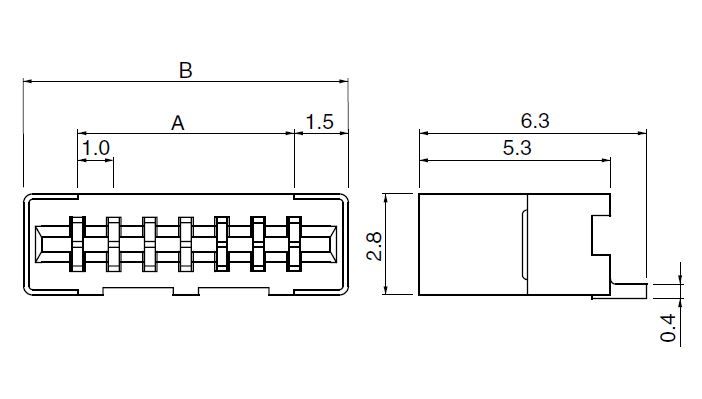

- Dimensions: Height 2.8mm, width 6.3mm, pitch 1.0mm
- Standards: Recognized by UL, compliant with RoHS
- Packaging: Supplied on embossed tape for automatic mounting
Buy the Buy JST FFC Connector Part Number 03FMS10SPTFLFSN Online
Experience secure and reliable flexible cable connections with the JST FFC Connector, featuring a compact 1.0mm pitch, snap-in design, and surface-mount compatibility. Manufactured with high-quality phosphor bronze contacts and tin plating, it ensures durability and excellent electrical performance. Ideal for high-density electronic assemblies, this connector complies with RoHS standards and is supplied on embossed tape to facilitate automation. Upgrade your device assembly with an easy-to-install, robust, and industry-standard component designed for modern electronic applications.
Get JST FFC Connector 03FMS10SPTFLFSN today—optimized for reliable flexible cable connections with secure snap-in mounting and high-density support.
Frequently Asked Questions
Where can I buy JST 03FMS10SPTFLFSN?
You can click on the BUY or RFQ button to purchase 03FMS10SPTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 03FMS10SPTFLFSN?
You can download the 03FMS10SPTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 03FMS10SPTFLFSN?
JST
