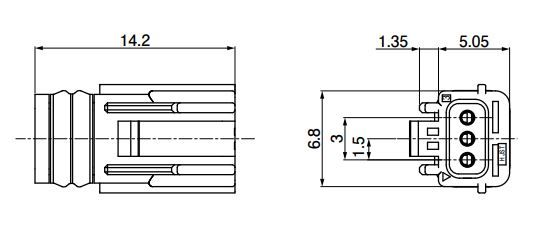

JST 03RZWPVKNN Waterproof Connector
The 3-position ZWP waterproof connector series receptacle assembly features a 1.5mm pitch, suitable for applications up to 50V. It supports wire sizes from 28 to 24 AWG and has tin-plated contacts for corrosion resistance. Designed with Grade 7 durability, this connector ensures reliable performance in harsh environments. It boasts waterproof performance with an IPX7 rating, which makes it ideal for outdoor and industrial uses. The connector complies with RoHS2 standards, features PBT housing with silicone rubber seals, and provides a secure, moisture-proof connection.
JST 03RZWPVKNN Waterproof Connector Specifications:
- Pitch: 1.5 mm
- Number of circuits: 3
- Applicable wire range: AWG 28 to 24
- Wire insulation diameter: 0.9 to 1.2 mm
- Contact material: Tin-plated copper alloy
- Voltage rating: 50 V AC/DC
- Current rating: 2 A AC/DC
- Temperature range: -25°C to +85°C
- Ingress protection: IPX7 (Grade 7 waterproof)
- Housing material: PBT, UL94V-0, black
- Seal rubber: Silicone rubber, brown
- Insulation resistance: 500 MΩ min.
- Contact resistance: Initial / 10 mΩ max., After environmental tests / 20 mΩ max.
- Withstanding voltage: 500 VAC/minute
- RoHS2 compliant
Buy the JST 03RZWPVKNN – Reliable Waterproof Connector for Industrial Applications
Experience the reliability of the waterproof connector designed for industrial and outdoor applications, rated IPX7 for ingress protection. Suitable for wire sizes from 28 to 24 AWG, it features corrosion-resistant tin-plated contacts and a durable housing. Ideal for applications requiring a secure, moisture-proof connection up to 50V, with excellent resistance to environmental stresses. Purchase online now to ensure your project benefits from high-quality, robust electrical connections with easy installation and consistent performance in demanding environments.
Get JST 03RZWPVKNN today—built for precision and long-lasting durability in harsh environmental conditions.
Frequently Asked Questions
Where can I buy JST 03RZWPVKNN?
You can click on the BUY or RFQ button to purchase 03RZWPVKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 03RZWPVKNN?
You can download the 03RZWPVKNN datasheet or visit the JST website for support.
Who is the manufacturer of 03RZWPVKNN?
JST
