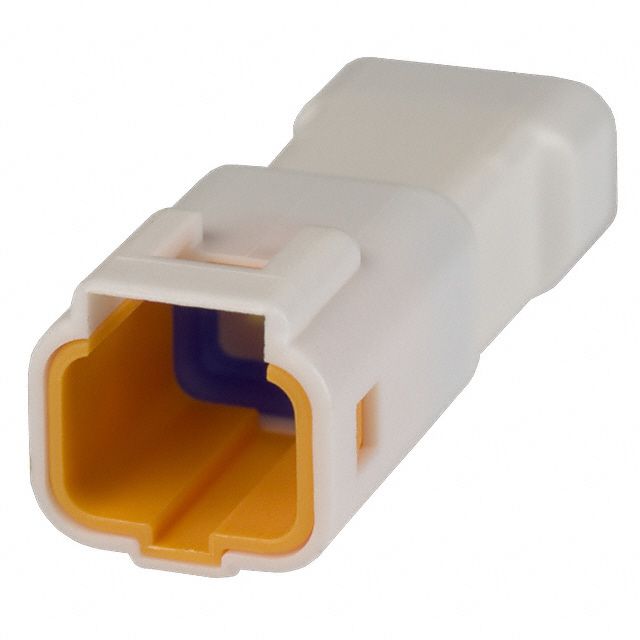

JST 03TJWPFVSLES Waterproof Tab Housing Connector
This waterproof tab housing connector from the JWPF series features a 2.00mm pitch and a 3-position configuration. Designed for free hanging applications, it employs crimp termination and a latch lock mechanism for secure connections. The housing is made from natural-colored PBT, UL94V-0 rated, providing durability and resistance to environmental factors. With a waterproof grade of IPX7, it offers excellent ingress protection, suitable for applications requiring reliable sealing against water and moisture. It is compliant with RoHS standards, ensuring eco-friendly, safe use in electronic assemblies.
JST 03TJWPFVSLES Waterproof Tab Housing Connector Specifications:
- Current rating: 3 A AC, DC (AWG #22)
- Voltage rating: 100 V AC, DC
- Temperature range: -55°C to +85°C
- Contact resistance: Initial/10 mΩ max., Environmental/15 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22, 0.13 to 0.33 mm²
- Insulation O.D.: 1.4 to 1.7 mm
- Housing material: PBT, UL94V-0, natural (white)
- Waterproof grade: IPX7 (JIS C 0920, IEC 60529)
- Number of positions: 3
- Housing type: Free hanging, with latch lock
- Housing color: Natural, water-resistant
- RoHS compliant
Buy the JST Series JWPF Waterproof Connector: 03TJWPFVSLES
Purchase the JST Series waterproof tab housing connector now for secure, water-resistant connections ideal for outdoor and industrial applications. Featuring a 2.00mm pitch, 3-position configuration, and durable, UL94V-0 rated PBT housing, this connector provides IPX7 ingress protection, ensuring excellent sealing against water and moisture. The crimp termination method with latch lock ensures a reliable, vibration-resistant connection. Perfect for applications demanding high water resistance combined with ease of installation, this connector is RoHS compliant and ready for your online order to improve your projects’ durability and safety.
Order your JST Series JWPF waterproof connector with 3-position tab housing today and ensure reliable, sealed connections in water-sensitive electronic projects.
