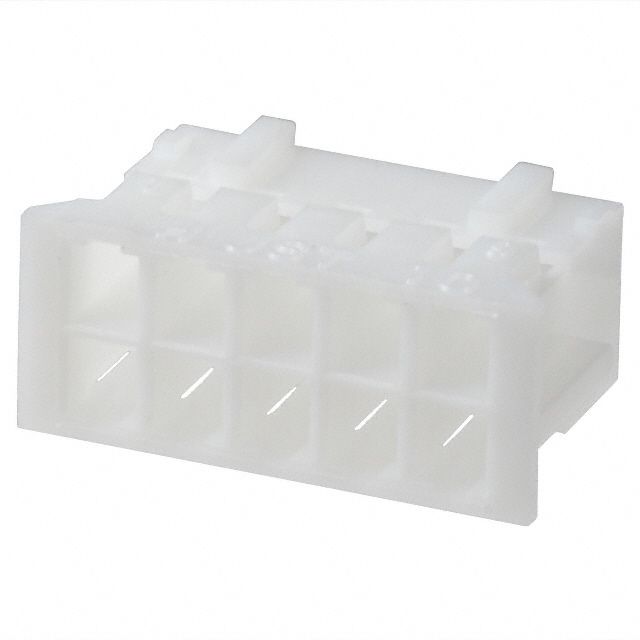

JST PHDR10VS Wire-to-Board Connector
This is a 10-position connector from the PHD Series with a 2.0mm pitch, designed for high-density, low-profile wire-to-board connections. It features crimp-style termination compatible with AWG #28 to #22 wires, supporting a current rating of 3A and voltage of 250V. Made from durable materials including glass-filled nylon and copper alloy, it ensures reliable electrical contact and environmental resistance. The connector complies with RoHS standards, making it suitable for various electronic applications requiring compact, robust, and compliant connectors.
JST PHDR10VS Wire-to-Board Connector Specifications:
- Pitch: 2.0mm
- Number of positions: 10
- Current rating: 3A AC/DC
- Voltage rating: 250V
- Temperature range: -25°C to +85°C
- Contact Resistance: Initial 10mΩ max, after testing 20mΩ max
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6mm
- Material: Copper alloy, tin-plated, glass-filled nylon, UL94V-0
- RoHS compliant
- Features: Fully shrouded, high-density, low-profile design, free hanging application
Buy the JST PHD Series Connector: 2.0mm Pitch 10-Position PHDR10VS
Order the JST PHD Series 10-position connector with a 2.0mm pitch online today for premium quality and dependable performance. Its crimp-style design supports wires from AWG #28 to #22, suitable for high-density applications. Made from durable glass-filled nylon and copper alloy, it guarantees excellent electrical contact and environmental resistance. Fully RoHS compliant, this connector is ideal for compact, low-profile designs in electronics, ensuring reliable connections for demanding industrial and consumer electronic devices. Purchase online now for fast delivery and competitive pricing.
Buy JST PHD Series 10-position connector with 2.0mm pitch now and experience reliable, high-density wiring solutions for your electronic projects.
Frequently Asked Questions
Where can I buy JST PHDR10VS?
You can click on the BUY or RFQ button to purchase PHDR10VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHDR10VS?
You can download the PHDR10VS datasheet or visit the JST website for support.
Who is the manufacturer of PHDR10VS?
JST
