JST 03TZWPVKNN Waterproof Connector
The 3-position waterproof connector series features a compact 1.5mm pitch design with waterproof performance rated at IPX7. Suitable for 28-24 AWG insulated stranded copper wires, it offers a current rating of 2 A and a voltage rating of 50 V. The contacts are tin-plated for corrosion resistance, and the connector can withstand temperatures from -25°C to +85°C. Built with durable PBT housing, this reliable connector ensures sealing and environmental resistance for various waterproof electronic applications.
JST 03TZWPVKNN Waterproof Connector Specifications:
- Pitch: 1.5 mm
- Number of circuits: 3
- Wire range: AWG #28 to #24 (0.08 to 0.21 mm²)
- Applicable wire insulation diameter: 0.9 to 1.2 mm
- Current rating: 2 A AC/DC
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial 10 mΩ max, After environmental tests 20 mΩ max
- Insulation resistance: 500 MΩ min
- Withstanding voltage: 500 VAC/minute
- Material: Copper alloy, tin-plated
- Housing: PBT, UL94V-0, black
- Sealing: Silicone rubber, brown
- Waterproof grade: IPX7 (JIS C 0920)
- RoHS2 compliant

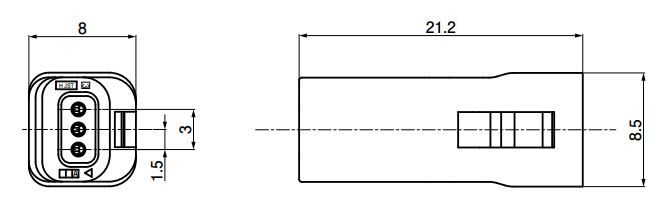

Buy the Buy JST Waterproof Connector Part Number 03TZWPVKNN Online
Purchase the JST waterproof connector 03TZWPVKNN today and enjoy a reliable, corrosion-resistant solution for waterproof electronic connections. Designed with a compact 1.5mm pitch and IPX7 sealing, this connector is suitable for 28-24 AWG wires, providing optimal performance in harsh environments. It features durable tin-plated contacts, a robust housing made of UL94V-0 PBT, and a temperature range of -25°C to +85°C. Perfect for applications requiring waterproof, environmental resistance with certified safety standards.
Order your JST Series 03TZWPVKNN waterproof connector today and ensure reliable, corrosion-resistant connections for your waterproof electronic projects.
Frequently Asked Questions
Where can I buy JST 03TZWPVKNN?
You can click on the BUY or RFQ button to purchase 03TZWPVKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 03TZWPVKNN?
You can download the 03TZWPVKNN datasheet or visit the JST website for support.
Who is the manufacturer of 03TZWPVKNN?
JST
