JST 04FMNSMTATFLFSN FMN connector
This 4-position FMN connector features a 1.0mm pitch, suitable for single-mode FFC connections. It's a surface-mount, right-angle type with a black finish, rated for 50V DC, and designed for reliable electrical performance in compact electronic assemblies. Made with phosphor bronze contacts and a durable PBT or PA 6T housing, it complies with RoHS standards. The connector ensures stable connection with a contact resistance max of 30mΩ initially, and 50mΩ after environmental testing, suitable for various electronic device applications.
JST 04FMNSMTATFLFSN FMN connector Specifications:
- Current rating: 0.5A DC
- Voltage rating: 50V DC
- Temperature range: -25°C to +85°C
- Contact Material: Phosphor bronze, copper-undercoated, tin-plated
- Housing: PBT, UL94V-0, black
- Material: Brass, copper-undercoated, tin-plated for solder tab
- RoHS compliance
- Applicable FFC: Conductor pitch/1.0mm, width/0.7mm, thickness/0.3+0.05mm
- Applicable PCB thickness: 1.6mm
- Contact resistance: Initial/30mΩ max, after environmental testing/50mΩ max
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/min
- Housing Material: PA 6T, black
- Solder tab: Brass, copper-undercoated, tin-plated

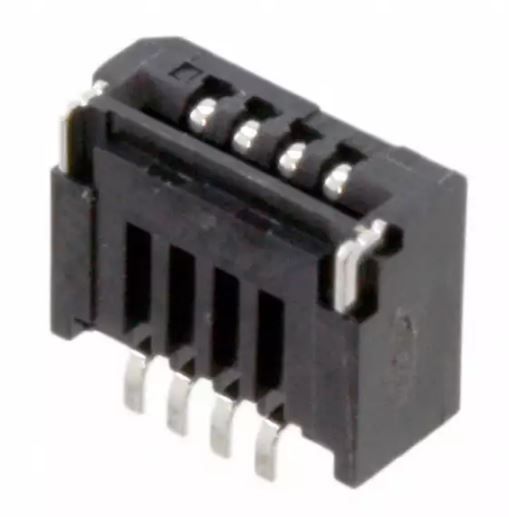

Buy the Buy JST FMN Connector Part Number 04FMNSMTATFLFSN Online
Purchase the JST FMN connector with 4 positions and 1.0mm pitch online today. Designed for surface-mount applications, this connector offers excellent electrical performance with a voltage rating of 50V. Its robust construction includes phosphor bronze contacts and durable housing materials, ensuring long-term reliability. Ideal for FFC and PCB connections, this RoHS-compliant component is suitable for compact electronic devices requiring stable and secure connections. Order now to enhance your electronic assemblies with proven quality.
Buy JST FMN connector with 1.0mm pitch now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy JST 04FMNSMTATFLFSN?
You can click on the BUY or RFQ button to purchase 04FMNSMTATFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04FMNSMTATFLFSN?
You can download the 04FMNSMTATFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 04FMNSMTATFLFSN?
JST
