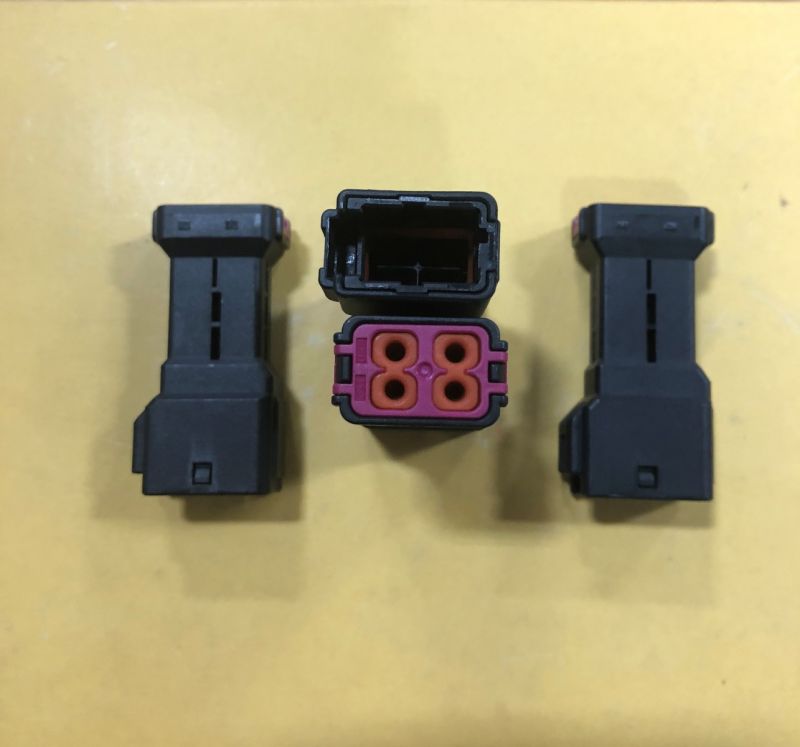

JST 04TJWPSVKKNDXB1 Waterproof Connector
This waterproof wire-to-wire connector from the JWPS series features a 4.0mm pitch and is rated for 300V AC/DC, suitable for industrial and electronic applications. Constructed with a solid rubber seal, contained seal ring, and double-spring design, it ensures grade 7 ingress protection (IPX7) as per JIS C 0920 and IEC 60529 standards. The connector supports wire sizes from 22 to 18 AWG, with a temperature range of -55°C to +85°C, making it ideal for harsh environments requiring reliable waterproof connections in automation, instrumentation, and control systems.
JST 04TJWPSVKKNDXB1 Waterproof Connector Specifications:
- Current rating: 4 A AC, DC (AWG #22), 5 A (AWG #20), 6 A (AWG #18)
- Voltage rating: 300 V AC/DC
- Temperature range: -55°C to +85°C
- Applicable wire: AWG #22 to #18, insulation O.D.: 1.75 to 2.5 mm
- Waterproof grade: IPX7 (JIS C 0920, IEC 60529)
- Housing Material: Glass-filled PBT
- Seal Material: Silicone rubber
- Housing-to-terminal locks for secure connection
- Double-spring construction for durability
- Mis-mating prevention key for correct assembly
Buy the JST JWPS Series Waterproof Connector – Reliable Waterproof Connectors for Industrial Applications
Purchase the Waterproof Connector today and benefit from high ingress protection, robust sealing, and reliable electrical connectivity in demanding industrial environments. Designed to withstand water exposure up to IPX7 standards, this connector supports wire sizes from 22 to 18 AWG, rated for 300V. Its durable PBT housing, silicone rubber sealing, and secure locking mechanisms ensure safety and long-term performance. Ideal for use in automation, process control, and outdoor electronic systems, making your installations safer and more reliable. Order now and secure your essential waterproof connections online.
Buy JST JWPS connector now and experience unmatched waterproof reliability and secure connections for industrial automation and electronics.
Frequently Asked Questions
Where can I buy JST 04TJWPSVKKNDXB1?
You can click on the BUY or RFQ button to purchase 04TJWPSVKKNDXB1 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04TJWPSVKKNDXB1?
You can download the 04TJWPSVKKNDXB1 datasheet or visit the JST website for support.
Who is the manufacturer of 04TJWPSVKKNDXB1?
JST
