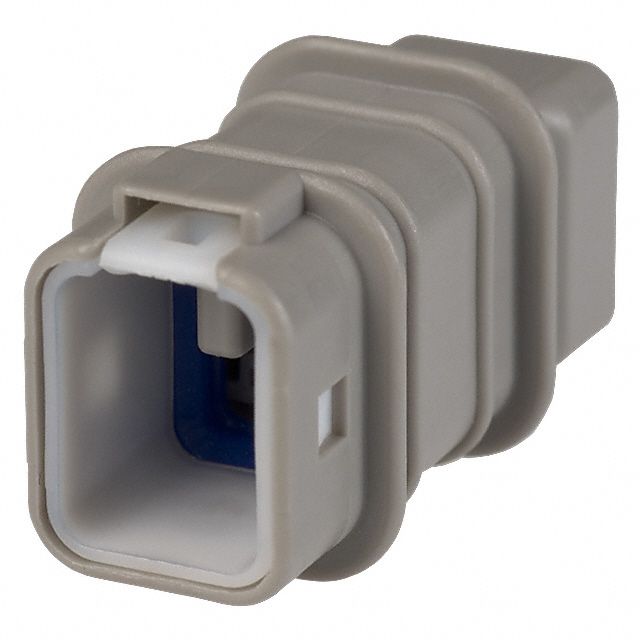

JST 05TJWPFHHLED Waterproof Connector Housing
The waterproof JWPF series connector housing features a 2.0mm pitch and 5 positions, designed for secure and water-resistant connections. Made from flame-retardant PBT material (UL94V-0), it offers excellent durability and resistance to harsh environments. Compatible with wires from AWG #26 to #22 and supporting voltage ratings up to 100V, it is ideal for applications requiring a high level of ingress protection (IPX7). The connector includes rubber seals and locks for optimal water-tightness and secure assembly, suitable for industrial, automation, and electronics use.
JST 05TJWPFHHLED Waterproof Connector Housing Specifications:
- Material: PBT, UL94V-0, natural (white)
- Number of positions: 5
- Pitch: 2.0mm
- Wire size compatibility: AWG #26 to #22 (0.13 to 0.33 mm²)
- Voltage rating: 100 V AC/DC
- Current rating: 3 A AC/DC (AWG #22)
- Temperature range: -55°C to +85°C
- Contact resistance: Initial/10 mQ max., Environmental/15 mQ max.
- Insulation resistance: 1,000 MΩ minimum
- Withstanding voltage: 1,000 VAC/minute
- Ingress Protection: Grade 7 (IPX7 IEC 60529)
- Housing: Gray, PBT material, flame-retardant
- Seal: Rubber, included with housings
- Applicable wire diameter: 1.4 to 1.7 mm OD
- Standards: RoHS, IEC 60529 IPX7, JIS C 0920 IPX7
