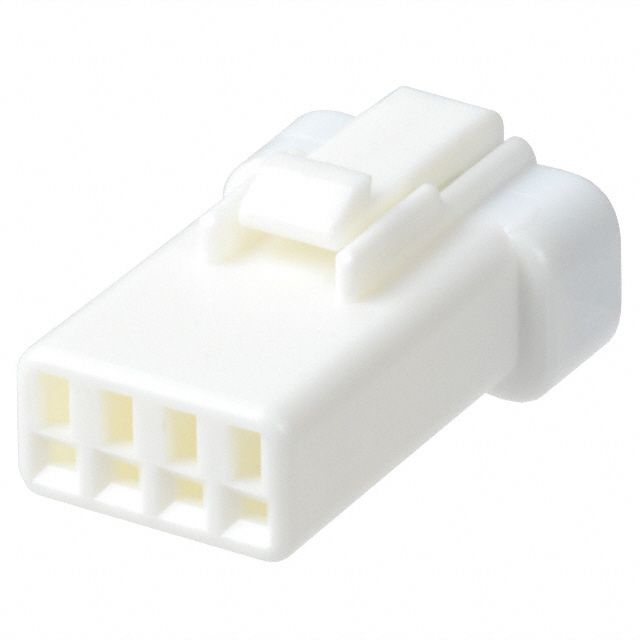

JST 04RJWPFVSLES Waterproof Connector Housing
This waterproof connector receptacle housing from the JWPF series features a 4-position configuration with a 2.00mm pitch, ideal for applications requiring high ingress protection. Constructed from UL94V-0 rated PBT in natural color, it includes a latch lock mechanism for secure connections and is compatible with crimp contacts. Designed for durability, it supports wiring from AWG 26 to 22 and withstands temperatures from -55°C to +85°C. Its waterproof grade of IPX7 ensures reliable performance in demanding environments, making it suitable for various industrial and electronics projects.
JST 04RJWPFVSLES Waterproof Connector Housing Specifications:
- Material: PBT, UL94V-0, natural finish
- Number of Positions: 4
- Pitch: 2.00mm
- Wiring Range: AWG 26 to 22 (0.13 to 0.33 mm²)
- Insulation O.D.: 1.4 to 1.7 mm
- Temperature Range: -55°C to +85°C
- Current Rating: 3 A AC/DC
- Voltage Rating: 100 V AC/DC
- Contact Resistance: Initial 10 mΩ max, after tests 15 mΩ max
- Insulation Resistance: ≥ 1000 MΩ
- Withstanding Voltage: 1000 VAC/min
- Ingress Protection: IPX7 waterproof grade
- Housing Color: Natural
- Compatible with crimp contacts for reliable wiring
- Includes seal rubber plates and lock mechanism for secure connection
Buy the Buy JST Waterproof Connector Receptacle Housing Part Number 04RJWPFVSLES Online
Order the JST waterproof connector housing from the JWPF series today and ensure reliable, ingress-resistant connections for your projects. Crafted from durable PBT material with UL94V-0 flame rating, it provides robust protection against water and environmental factors. With a 2.00mm pitch and compatibility with crimp contacts, this 4-position housing supports wiring from AWG 26 to 22. Its IPX7 waterproof grade, secure latch lock, and included rubber sealing plates make it ideal for demanding industrial and electronic applications, offering long-lasting performance and ease of installation.
Get JST waterproof connector housing 04RJWPFVSLES today—designed for secure, high-ingress protection in industrial, electronic, and automation applications.
Frequently Asked Questions
Where can I buy JST 04RJWPFVSLES?
You can click on the BUY or RFQ button to purchase 04RJWPFVSLES from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04RJWPFVSLES?
You can download the 04RJWPFVSLES datasheet or visit the JST website for support.
Who is the manufacturer of 04RJWPFVSLES?
JST
