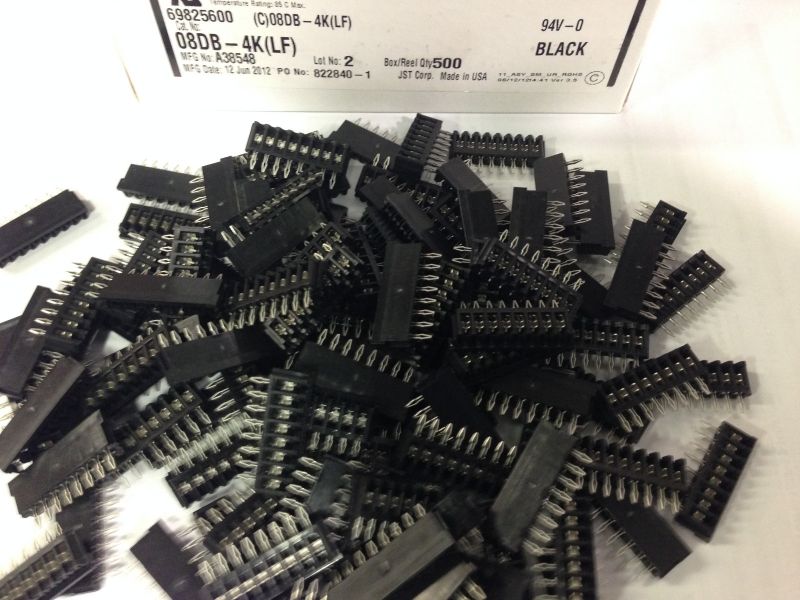

JST 08DB4KLF PCB Connector Header
This 8-position connector header from the DB Series features a 2.5mm pitch, rated for 250V, and compatible with 24 AWG wire. Its tin-plated finish ensures corrosion resistance and reliable electrical contact. Designed for easy PCB mounting with a compact profile, it includes twin U-slot insulation displacement sections for secure wire connection. The locking solder tail provides stable contact, while the strain relief feature protects against stress from vibration and impact. Suitable for automation, electronics, and PCB applications, it offers excellent reliability and ease of installation.
JST 08DB4KLF PCB Connector Header Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000M min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: UL1007, AWG #28, #26, #24, contact JST for details regarding other UL wires
- Conductor: 7 strands, tin-coated
- Insulation O.D.: 1.0 to 1.5mm
- Applicable PCB thickness: 1.6mm
- Material: Phosphor bronze contact, nickel-undercoated, tin-plated; Housing: PAS, ULS4V-0
- Flammability: UL 94V-0
- RoHS compliant
Buy the JST Series DB Connector: 8-Position 2.5mm Pitch PCB Header 08DB4KLF
Discover the JST DB Series 8-position connector header with a 2.5mm pitch rated for 250V. Compatible with 24 AWG wire, it features a corrosion-resistant tin finish, twin U-slot insulation displacement sections, and a locking solder tail for stable, secure connection. Its compact, low-profile design includes strain relief to withstand vibration and impact, making it ideal for automation, electronics, and PCB assemblies. Purchase online today to experience reliable performance and effortless installation for your electronic designs.
Buy JST 08DB4KLF now and enjoy easy PCB mounting with corrosion-resistant finishes and reliable insulation displacement technology for your electronic projects.
Frequently Asked Questions
Where can I buy JST 08DB4KLF?
You can click on the BUY or RFQ button to purchase 08DB4KLF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 08DB4KLF?
You can download the 08DB4KLF datasheet or visit the JST website for support.
Who is the manufacturer of 08DB4KLF?
JST
