JST SHJP06VSHF JST Connector Housing
This JST connector housing features a 6-position configuration with a 1.00mm pitch, ideal for low-profile applications. Its secure locking mechanism ensures reliable and stable connections, making it suitable for powering LED systems. Designed to accommodate wires from 32 to 28 AWG with insulation diameters between 0.54 and 0.8 mm, it is rated for up to 125V AC/DC and a current of 1.0A. Made from durable materials, it ensures safety, RoHS compliance, and long-lasting performance in electronic and lighting applications.
JST SHJP06VSHF JST Connector Housing Specifications:
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 125 VAC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: 20 mΩ max (initial), 40 mΩ max (after environmental tests)
- Insulation resistance: 100 MΩ min
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size AWG #32 to #28, insulation O.D.: 0.54 to 0.8 mm
- Material: Phosphor bronze, tin-plated; housing: PA 4T (top entry), PA6T (side entry)

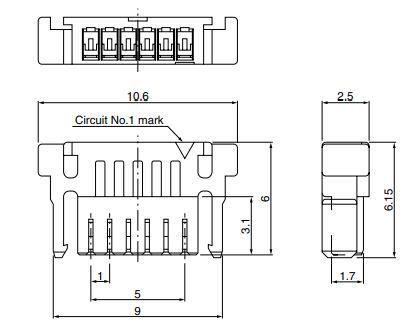

- Connector outline: 6 circuits, 1.00mm pitch, low-profile design, RoHS compliant
Buy the Buy JST Connector Housing Part Number SHJP06VSHF Online
Purchase the JST connector housing with secure locking and 6-position configuration online today. Its low-profile design and reliable connection make it perfect for LED power supply applications. Suitable for 32-28 AWG wires, rated for 125V and 1A current, this durable connector ensures safety and consistent performance. Made from high-quality materials and RoHS compliant, it's ideal for electronics, LED lighting, and other low-profile wiring needs. Order now for fast, convenient online shopping and dependable connectivity.
Buy JST SHJP06VSHF connector housing now and ensure reliable low-profile wiring for LED power supplies with secure locking and high-quality materials.
Frequently Asked Questions
Where can I buy JST SHJP06VSHF?
You can click on the BUY or RFQ button to purchase SHJP06VSHF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHJP06VSHF?
You can download the SHJP06VSHF datasheet or visit the JST website for support.
Who is the manufacturer of SHJP06VSHF?
JST
