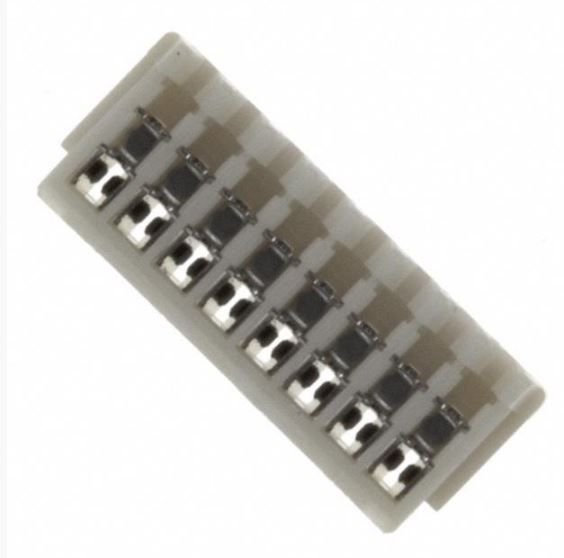

JST 08SR3S Connector Receptacle
This is a reliable, 8-position, free-hanging connector receptacle in the SR series, featuring 1.00mm pitch and designed for 30 AWG wire. Made with tin-plated copper, it has a natural finish and complies with RoHS standards. The connector ensures secure electrical connections with a current rating of 0.7 ADC and a voltage rating of 50V DC. Its compact design includes a through-hole type with a top entry configuration, suitable for automation and PCB applications, offering durable insulation and contact resistance. Ideal for electronics, robotics, and industrial equipment.
JST 08SR3S Connector Receptacle Specifications:
- Current rating: 0.7 ADC
- Voltage rating: 50V DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after environmental testing/40mΩ max
- Insulation resistance: ≥100 MΩ
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG #30, 7 strands, tin-coated annealed copper
- Material: Copper alloy for contact, PA for housing
- Finish: Tin-plated, natural
- RoHS: compliant
- Dimensions: 1.00mm pitch, 8 positions, fits 30 AWG wire
- Type: Through-hole, top entry
- Design: Compact insulation displacement connector, RoHS compliant
Buy the JST 08SR3S – Reliable Connectors for Industrial Applications
Purchase JST 08SR3S connector receptacle online today and experience dependable electrical connections. Designed for 30 AWG wire with a 1.00mm pitch, it ensures secure, stable contact suitable for robots, electronics, and industrial equipment. The tin-plated copper construction offers excellent durability and corrosion resistance. Its compact top-entry design simplifies installation on PCB boards and in automation systems, fulfilling RoHS standards for safe manufacturing. Buy now to enhance your projects with high-quality, reliable connectors that guarantee long-term performance and safety.
Get JST 08SR3S today—built for precision, durability, and secure wire connections in industrial and automation projects.
