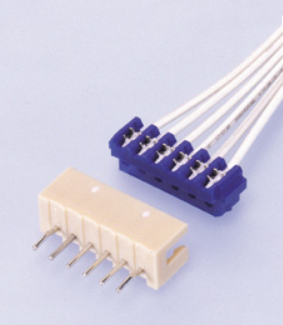

JST 10DRNE6SP insulation displacement connector
This JST IDC connector from the DR Series features 10 positions with a 2.0mm pitch, designed for reliable electrical connections in electronic equipment. With a compact size of 5.0mm in mounting height and 4.8mm in thickness, it is suitable for miniaturized devices such as VCRs, cameras, and car stereo systems. The connector employs twin U-slot insulation displacement sections and folded beam double-leaf contacts to ensure durability and consistent performance. It offers a current rating of 1.0A and withstands voltages up to 100V, supporting 26 AWG wire, with features for strain relief and vibration resistance.
JST 10DRNE6SP insulation displacement connector Specifications:
- Pitch: 2.0mm
- Mounting Height: 5.0mm
- Thickness: 4.8mm
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10mΩ max, after testing/20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061, AWG #28, #26, tin-coated, 7 strands
- Insulation outer diameter: 0.9 to 1.0mm
- Applicable PC board thickness: 1.2 to 1.6mm
- Housing: PA 66, ULS4V-0, RoHS compliant
