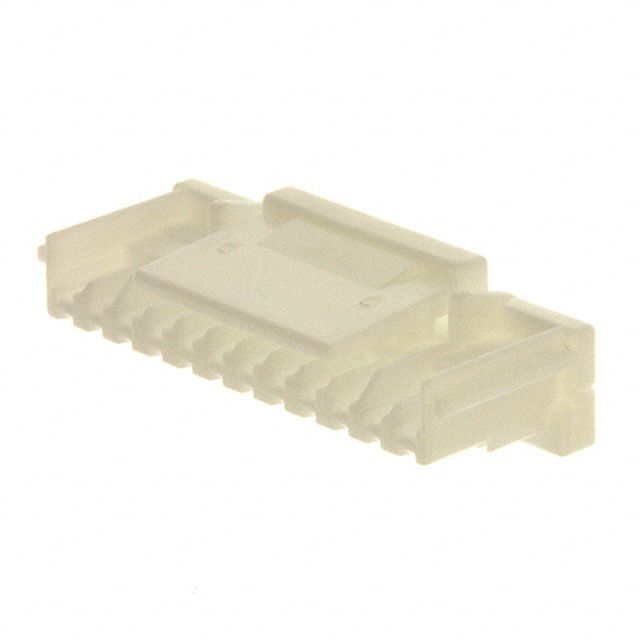

JST ZER12VS female socket connector
This ZE Series 12-position female socket connector receptacle offers reliable 1.5mm pitch connections with crimp contacts compatible with wire sizes 30-24 AWG. Ideal for precise, secure connections in electronic assemblies, it features a natural finish and is designed for free-hanging installation. The connector complies with RoHS standards, rated for 100V AC/DC and 2A current. It ensures excellent insulation resistance, withstands voltage up to 500V AC, and maintains low contact resistance for stable electrical performance in various industrial and consumer electronics applications.
JST ZER12VS female socket connector Specifications:
- Current rating: 2A AC, DC
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max; After environmental testing/40mΩ max
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG 30 to 24, Insulation O.D./0.8 to 1.2mm
- Material: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Flammability: UL 94V-0
- RoHS compliance
Buy the JST Series ZE 12-Position Female Socket Connector: ZER12VS
Order the JST ZE Series 12-position female socket connector now to ensure stable, durable connections for your electronic devices. Designed with a 1.5mm pitch and rated for 100V, it features crimp contacts suitable for 30-24 AWG wires. Its RoHS compliance and long-lasting materials make it ideal for industrial and consumer electronics. Easily integrate this connector into your wiring harnesses and circuit boards for secure and reliable operation. Purchase online today for fast delivery and professional quality.
Get JST ZE Series 12-position female socket connector today—built for secure, reliable electrical connections in your electronic projects.
Frequently Asked Questions
Where can I buy JST ZER12VS?
You can click on the BUY or RFQ button to purchase ZER12VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part ZER12VS?
You can download the ZER12VS datasheet or visit the JST website for support.
Who is the manufacturer of ZER12VS?
JST
