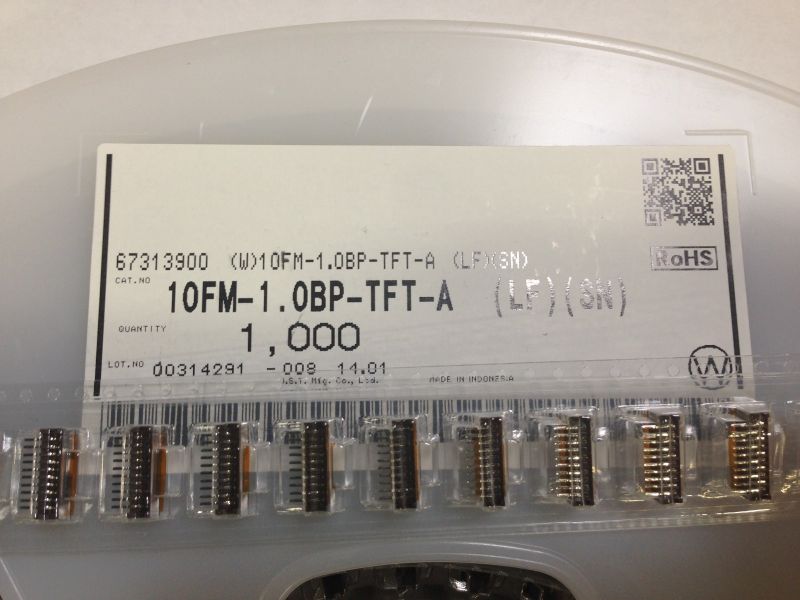

JST 10FM10BPTFALFSN Flat Cable Connector
This is a 10-position FFC and FPC connector with a 1.0mm pitch, designed for surface mounting. It features a top-entry design suitable for soldering and is rated for up to 50V. Ideal for compact electronic applications requiring reliable flat flexible cable connections.
JST 10FM10BPTFALFSN Flat Cable Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max., after testing/30mΩ
- Insulation resistance: 800MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable FFC and FPC: Conductor pitch 1.0mm, width 0.7mm, thickness 0.33mm
- Applicable PC board thickness: 0.8 to 1.6mm
- Housing: PBT, UL94V-0
- Contact Material: Phosphor bronze with tin-plating
- RoHS compliant, suitable for high-density mounting
Buy the JST 10FM10BPTFALFSN – Reliable Flat Cable Connectors for Industrial Applications
Enhance your electronic projects with this reliable 10-position flat cable connector featuring a 1.0mm pitch. Its surface-mount design and high-quality materials ensure easy assembly and lasting connection stability. Perfect for compact, high-density applications inside electronic devices, providing secure and vibration-resistant connections. Available at competitive prices online, this connector is a critical component for engineers and product designers seeking dependable FFC/FPC connections. Order now to streamline your manufacturing process and ensure optimal performance in your electronic systems.
Buy JST 10FM10BPTFALFSN now and experience unmatched reliability and performance in high-density electronic assemblies.
Frequently Asked Questions
Where can I buy JST 10FM10BPTFALFSN?
You can click on the BUY or RFQ button to purchase 10FM10BPTFALFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 10FM10BPTFALFSN?
You can download the 10FM10BPTFALFSN datasheet or visit the JST website for support.
Who is the manufacturer of 10FM10BPTFALFSN?
JST
