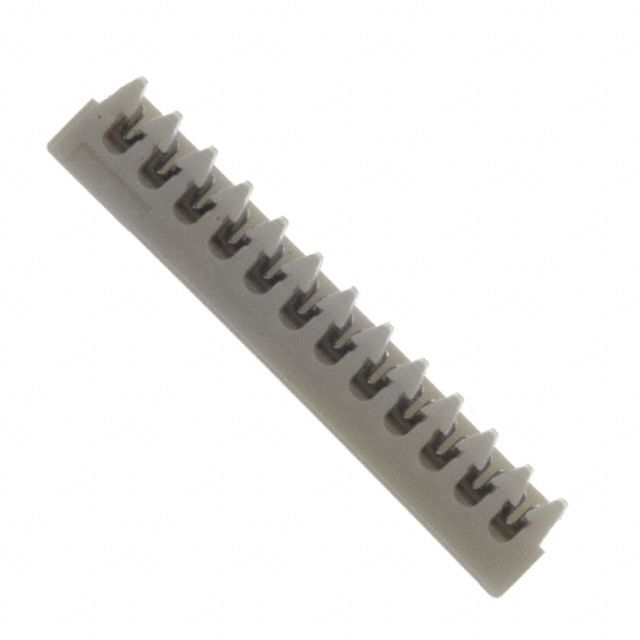

JST 12SR3S 12-Position Data Connector
This connector receptacle from the SR Series features 12 positions with a 1.00mm pitch, suitable for 30 AWG wires. It supports reliable electrical connections with a tin-plated, natural-colored housing and a free hanging, closed-end design. The connector is constructed with copper alloy contact material for durability and reflow-treated tin plating for corrosion resistance. Compatible with through-hole and SMT mounting, it suits various electronic applications including robotics and control systems, ensuring precise positioning and RoHS compliance for environmentally conscious manufacturing.
JST 12SR3S 12-Position Data Connector Specifications:
- Current rating: 0.7ADC
- Voltage rating: 50V DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, post-environment testing/40mΩ max
- Insulation resistance: >100MΩ
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG #30, 7 strands, tin-coated annealed copper
- Insulation OD: 0.54 to 0.58mm
- Housing material: PA, UL94V-0, natural
- Contact material: Phosphor bronze, tin-plated
- Dimensions: Not specified (compatible with 12 positions and 1.00mm pitch)
- RoHS compliant
- Mounting type: Through-hole and SMT
- Finish: Reflow tin-plated
Buy the JST 12SR3S – Reliable Connector for Electronic Applications
Enhance your electronic assembly with the JST 12SR3S connector, featuring 12 positions at a 1.00mm pitch, suitable for 30 AWG wires. This tin-plated, natural-colored housing ensures robust electrical performance, durability, and RoHS compliance. Its versatile design supports both through-hole and SMT mounting, making it ideal for robotics, control systems, and complex circuitry. Purchase online today for fast delivery, quality assurance, and a reliable connection solution trusted across industries.
Buy JST 12SR3S now and experience unmatched reliability and performance in your electronic connections with durable tin-plated conductivity.
Frequently Asked Questions
Where can I buy JST 12SR3S?
You can click on the BUY or RFQ button to purchase 12SR3S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 12SR3S?
You can download the 12SR3S datasheet or visit the JST website for support.
Who is the manufacturer of 12SR3S?
JST
