JST B03PVL Connector Header
This VL Series connector header features a 3-position configuration with a 6.2mm pitch, designed for reliable wire-to-board connections. Suitable for wire sizes from 22 to 12 AWG, it supports a voltage rating of up to 600V AC/DC and has a current rating depending on circuit count and wire gauge. Made of flame-retardant FR-4 material, it includes inner and outer locks for secure mounting and contact retention. The connector is RoHS compliant, with dimensions and features suitable for high-current applications and easy assembly. Perfect for industrial electronics and power systems requiring dependable and safe connections.
JST B03PVL Connector Header Specifications:
- Current rating: Up to 120A depending on circuit count and wire size
- Voltage rating: 600V AC/DC
- Temperature range: -25°C to +90°C
- Contact resistance: Initial value/7mΩ max, after testing/10mΩ max
- Insulation resistance: 1,000 MΩ min
- Withstanding voltage: 2,000V AC for 1 minute
- Applicable wire: AWG #22 to #12
- Applicable PC board thickness: 1.6mm
- Material: Phosphor bronze, tin-plated
- Housing material: PA 66, UL94V-0, white
- RoHS compliant
- Dimensions: Length varies with circuit number, approximately 40-130 mm
- Includes inner and outer housing locks for secure connection
- Designed for wire-to-wire and wire-to-board applications
- Connectors feature high current capacity suitable for industrial power applications
- Standards: Recognized and certified as per industry standards

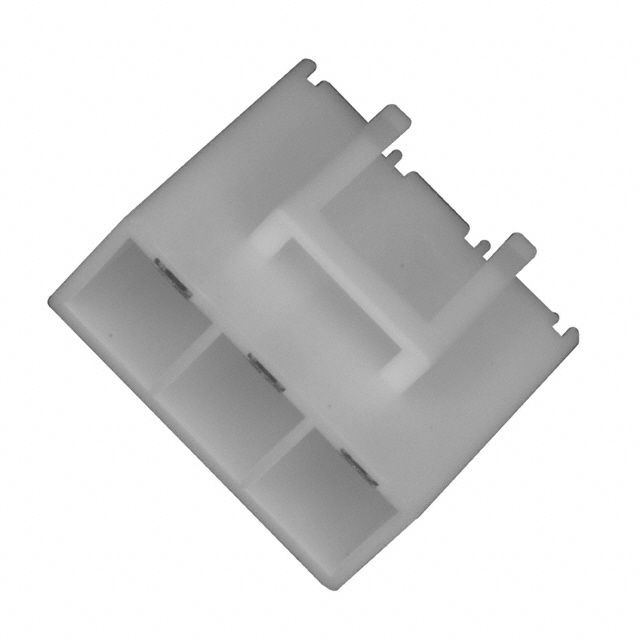

Buy the Buy JST VL Series Connector Header Part Number B03PVL Online
Secure your projects' electrical connections with the reliable JST VL Series connector header. Featuring a 6.2mm pitch, rated up to 600V and 120A, compatible with wire sizes from 22 to 12 AWG, it ensures safe and stable power transmission. Its durable construction and RoHS compliance make it suitable for industrial applications, power supply systems, and electronic manufacturing. Easily mounted with secure locks, this high-current connector guarantees long-term performance and safety, making it an excellent choice for professionals seeking quality and dependability in their wiring solutions.
Order your JST VL Series B03PVL connector today and ensure your power and wiring projects have reliable, high-current connections with excellent safety margin.
Frequently Asked Questions
Where can I buy JST B03PVL?
You can click on the BUY or RFQ button to purchase B03PVL from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B03PVL?
You can download the B03PVL datasheet or visit the JST website for support.
Who is the manufacturer of B03PVL?
JST
