JST 16NRD4KP Insulation Displacement Connector
This 16-position insulation displacement connector receptacle with a 2.5mm pitch is rated for 250V. Constructed with tin-plated phosphor bronze contacts and housed in durable PA 66 material, it features reliable insulation displacement technology, strain relief sections, and compatibility with various interconnect systems. Suitable for PCB and daisy chain configurations, it supports wires up to AWG 24 and offers RoHS compliance, making it ideal for compact electronic applications requiring robust and easy-to-install connections.
JST 16NRD4KP Insulation Displacement Connector Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: UL1007, AWG #28, #26, #24, conductor 7 strands, tin-coated
- Insulation O.D: 1.1 to 1.5mm
- Applicable PCB thickness: 1.6mm
- Material: contact made of phosphor bronze, tin-plated; housing: PA 66, ULS4V-0
- RoHS compliant
- Standards: Recognized with UL60989, Certified LR20812

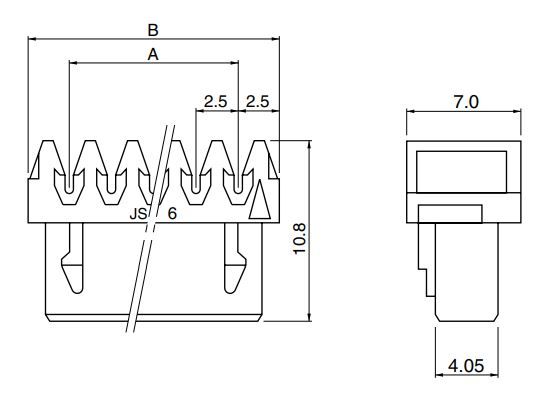

Buy the JST Series NRD 16-Position Connector: 16NRD4KP
Order the JST 16NRD4KP insulation displacement connector online today. Designed for electronic assemblies, it features a 2.5mm pitch, 250V rating, tin-plated contacts, and a sturdy housing. Perfect for PCB connections, daisy chaining, and versatile interconnect systems, this connector ensures reliable and secure electrical connections. Whether for manufacturing or repair, purchasing this connector online provides quick delivery, competitive pricing, and proven quality from a trusted supplier. Don’t miss out—enhance your electronic projects now.
Get JST 16NRD4KP today—built for reliable daisy chain connections and long-term durability.
Frequently Asked Questions
Where can I buy JST 16NRD4KP?
You can click on the BUY or RFQ button to purchase 16NRD4KP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 16NRD4KP?
You can download the 16NRD4KP datasheet or visit the JST website for support.
Who is the manufacturer of 16NRD4KP?
JST
