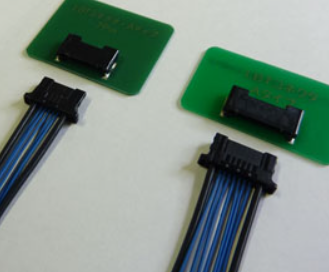

JST LBTAR09V2KKHF Housing Connector
Housing for power and signal connections, LBT Type A, designed for high current and space-efficient applications, featuring heat radiation, robust construction, and halogen-free materials. Suitable for connecting lithium polymer batteries or DC power supplies in industrial setups, offering reliable crimp contact connections for 2 power circuits and 7 signal contacts with low contact resistance and RoHS2 compliance. Its compact, high-strength design ensures dependable performance in harsh environments, making it an ideal choice for electronic and automation systems requiring secure, space-saving connections with excellent thermal management and environmental resilience.
JST LBTAR09V2KKHF Housing Connector Specifications:
- Current rating: Power supply circuit 7.0 A AC/DC (AWG #20), Signal circuit 0.5 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 15 mΩ max., After tests / 30 mΩ max. (power); Initial / 20 mΩ max., After tests / 40 mΩ max. (signal)
- Insulation resistance: 100 MΩ minimum
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Power supply AWG #24 to #20, Insulation O.D. 1.11-1.44 mm; Signal AWG #28, Insulation O.D. 0.6-0.8 mm
- Housing material: PBT, UL94V-0, heat resisting resin
- Contact material: Copper alloy, tin-plated (reflow treatment)
- RoHS2 compliant
- Number of circuits: 2 power, 7 signal contacts
- Dimensions vary per model, suitable for automatic crimping
- Compatible connectors: Receptacle and header with tape packaging
- Color: Black, halogen-free (HF)
Buy the JST LBTAR09V2KKHF – Reliable Power and Signal Connection for Industrial Applications
Enhance your industrial electronic setups with the JST Housing Connector designed for robust power and signal connections. Featuring space-saving low profile design, heat radiation structure, and high current capacity, this connector offers secure crimp contact connections with UL94V-0 rated, halogen-free materials. Its compact, high-strength construction ensures reliable performance in harsh environments. Perfect for automated assembly, it is RoHS2 compliant and supports a wide range of wire sizes. Upgrade your power distribution and signal management systems today for dependable and efficient connections, ensuring long-term operational stability.
Order your JST LBTAR09V2KKHF high-strength connector today and give your electronic projects dependable space-saving power and signal connections.
