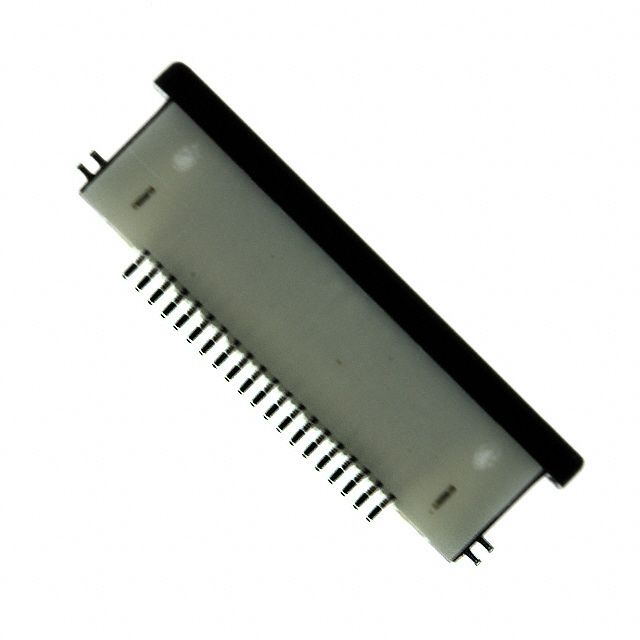

JST 20FLZRSM2TBLFSN Surface Mount Connector
The FLZ Series 20-position surface mount connector header features a compact 0.5mm pitch and right-angle design, ensuring reliable connections in tight spaces. It incorporates a slide lock mechanism for secure attachment and is tin-plated for corrosion resistance. Rated for 50V and 0.5A, it is suitable for FFC and FPC applications with conductor pitch/0.5mm, conductor width/0.35mm, and contact resistance of 40mΩ max initially. Compliant with RoHS standards, it integrates a heat-resistant, surface-mount design for versatile electronic device assembly.
JST 20FLZRSM2TBLFSN Surface Mount Connector Specifications:
- Pitch: 0.5mm
- Number of Circuits: 20
- Voltage Rating: 50V AC/DC
- Current Rating: 0.5A
- Contact Resistance: Initial/40mΩ max, after testing/60mΩ max
- Insulation Resistance: 800MΩ min
- Withstanding Voltage: 200V AC/minute
- Applicable FFC/FPC: Conductor pitch 0.5mm, conductor width 0.35mm, thickness 0.3±0.03mm
- Material: Phosphor bronze contacts, tin-plated; housing PA 6T UL94V-0
- Temperature Range: -25°C to +85°C
- RoHS Compliant: Yes
- Design: Right-angle, surface-mount, slide lock
- Finish: Tin-plated
- Standards: E60389, LR20812
Buy the JST Series FLZ 20-Position Surface Mount Connector: 20FLZRSM2TBLFSN
Secure your electronic designs with the JST Series FLZ connector, offering a compact 20-position, 0.5mm pitch, surface-mount interface. Designed for space-constrained applications, it features a slide lock for secure connections, tin-plated contacts resistant to corrosion, and a rated voltage of 50V at 0.5A current capacity. Suitable for FFC and FPC configurations, it ensures reliable electrical contact under varied environmental conditions, complies with RoHS standards, and supports high-volume automation with embossed tape packaging. Perfect for modern compact electronic assemblies requiring durable, efficient interconnects.
Order your JST Series FLZ 20-Position Surface Mount Connector today and equip your electronics with reliable, space-efficient connectivity.
