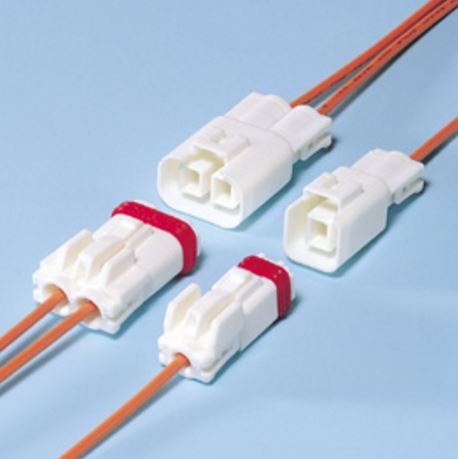

JST 02PMWPVSSR Waterproof Connector Housing
This waterproof connector plug housing from the MWP Series is designed for two positions with a 7.00mm pitch. It offers reliable electrical connection rated for 300V and compatible with 26-18 AWG wires, ensuring excellent performance in industrial environments. The housing features a wire end seal and a sliding locking mechanism for secure and easy assembly. With an IPX4 waterproof grade and RoHS compliance, it is suitable for applications requiring environmental protection and high safety standards. Ideal for industrial power supply connections and control systems.
JST 02PMWPVSSR Waterproof Connector Housing Specifications:
- Current rating: 7A at 300V AC/DC
- Voltage rating: 300V AC/DC
- Temperature range: -40°C to +105°C
- Contact resistance: Initial/7mΩ max, after testing/10mΩ max
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 1,500V AC/minute
- Applicable wire size: AWG #26 to #18 (0.13 to 0.75mm²)
- Insulation O.D.: 2.1 to 2.5mm
- Waterproof grade: IPX4 (JIS C 0920/IEC 60529)
- Housing material: PBT, UL94V-0 white
- Number of circuits: 1 or 2
- Acceptable wire diameter: 0.13 to 0.75mm²
- Material of contact: Phosphor bronze, tin-plated
- RoHS compliant, recognizes standards E60389 and LR20812
- Includes wire end seal and slider for model 02PMWPVSSR, rubber ring optional
- Housing size: Designed for 7.00mm pitch, compatible with crimp style terminals
Buy the JST 02PMWPVSSR – Reliable Waterproof Power Connector for Industrial Applications
Secure your industrial power connections with the waterproof connector housing from the MWP Series. Rated for 300V and compatible with 26-18 AWG wires, it features a reliable sliding lock and wire end seal for enhanced safety and durability. Designed for environments with IPX4 water ingress protection, this easy-to-assemble connector ensures high performance and environmental resistance. Ideal for various industrial applications, it provides a dependable connection solution that guarantees operational safety and compliance with RoHS standards, making it the perfect choice for demanding electrical systems.
Buy JST 02PMWPVSSR now and experience unmatched waterproof reliability and secure connection performance in industrial power supply setups.
Frequently Asked Questions
Where can I buy JST 02PMWPVSSR?
You can click on the BUY or RFQ button to purchase 02PMWPVSSR from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02PMWPVSSR?
You can download the 02PMWPVSSR datasheet or visit the JST website for support.
Who is the manufacturer of 02PMWPVSSR?
JST
