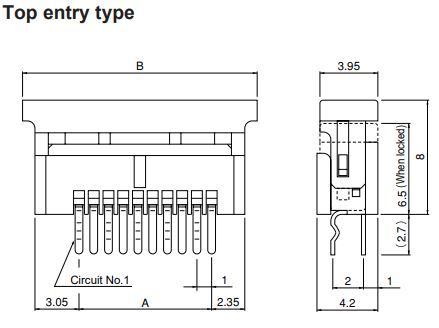

JST 20FMZSTLFSN FPC Connector
The FMZ series ZIF connector offers a compact and reliable solution for FFC applications, featuring a 1.0mm pitch, 20 circuits, and a zero insertion force mechanism. Constructed with phosphor bronze contacts tin-plated for durability and a glass-filled PBT housing for excellent insulation, it supports up to 0.5A current and 50V voltage ratings. Suitable for high-density packaging, it is RoHS compliant and designed for easy cable mating and disconnection, making it ideal for electronic devices requiring reliable and space-efficient connectors.
JST 20FMZSTLFSN FPC Connector Specifications:
- Pitch: 1.0mm
- Number of circuits: 20
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Contact Material: Phosphor bronze, tin-plated
- Housing Material: Glass-filled PBT, UL94V-0
- Temperature range: -25°C to +85°C
- Contact Resistance: Initial / 20m Ω max, after environmental testing / 30m Ω max
- Insulation Resistance: 800M Ω min
- Withstanding Voltage: 500V AC/minute
- Applicable FFC: Pitch/1.0mm, Width/0.7mm, Thickness/0.3+0.05mm
- Applicable PCB Thickness: 0.8 to 1.6mm
- RoHS compliant
- Standard Recognitions: E60389, LR20812
Buy the Buy Manufacturer FMZ Series 20FMZSTLFSN Part Number 20FMZSTLFSN Online
Purchase the FMZ series 20-pin FFC ZIF connector online today to ensure reliable, space-saving connections for your high-density electronic devices. Its 1.0mm pitch, durable contact construction, and RoHS compliance make it ideal for applications needing secure connections, easy assembly, and space efficiency. Designed with a zero insertion force mechanism, this connector simplifies cable installation and disconnection, reducing wear and extending mating life. Whether for consumer electronics, industrial equipment, or complex circuitry, buy online now for quick delivery and consistent quality.
Buy Manufacturer FMZ Series 20FMZSTLFSN now and experience unmatched reliability and performance for high-density electronic connections.
Frequently Asked Questions
Where can I buy JST 20FMZSTLFSN?
You can click on the BUY or RFQ button to purchase 20FMZSTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 20FMZSTLFSN?
You can download the 20FMZSTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 20FMZSTLFSN?
JST
