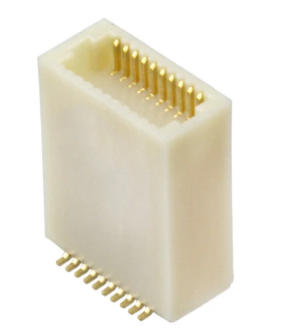

JST 20P100JMCSGBTF Board-to-board connector
The JMC Series 20-Contact Board-to-Board Connector features a 0.5 mm pitch, providing reliable electrical connections between printed circuit boards. Designed for compact electronic assemblies, it offers secure mating, absorption misalignment capabilities, and versatile stacking heights ranging from 3.0 to 11.0 mm. Made with phosphor bronze contacts, nickel-undercoated and gold-plated, and housing in UL94V-0 rated PA 6T material, this connector supports currents up to 0.5 A and voltages up to 50 V. It complies with RoHS standards and is supplied on embossed tape for efficient assembly.
JST 20P100JMCSGBTF Board-to-board connector Specifications:
- Current rating: 0.5 A AC, DC
- Voltage rating: 50 V AC, DC
- Temperature range: -25°C to +85°C
- Material: Phosphor bronze contact, nickel-undercoated, gold-plated
- Housing: PA 6T, UL94V-0
- Solder tab: Brass, tin-plated (reflow treatment)
- Stacking height: 3.0 to 11.0 mm
- Contact resistance: ≤50 mΩ initially / ≤100 mΩ after environmental test
- Insulation resistance: ≥50 MΩ
- Withstanding voltage: 100 V AC/min
Buy the JST Series JMC 0.5mm Board-to-Board Connector: 20P100JMCSGBTF
Secure your electronic assemblies with the JST series 20P100JMCSGBTF 0.5 mm pitch board-to-board connector. This space-efficient, reliable connector features absorption misalignment capability and supports currents up to 0.5 A. Perfect for compact device designs, it offers ease of installation on embossed tape. Made with durable phosphor bronze contacts and UL94V-0 rated housing, this connector complies with RoHS standards and ensures long-term performance—order online today for fast delivery and seamless integration into your projects.
Buy JST 20P100JMCSGBTF now and experience unmatched reliability and space-saving design for your electronic connections.
Frequently Asked Questions
Where can I buy JST 20P100JMCSGBTF?
You can click on the BUY or RFQ button to purchase 20P100JMCSGBTF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 20P100JMCSGBTF?
You can download the 20P100JMCSGBTF datasheet or visit the JST website for support.
Who is the manufacturer of 20P100JMCSGBTF?
JST
