JST 20PSJMDSSG1TFLFSN Board-to-Board Connector
A 20-position connector plug featuring surface mount outer shroud contacts assembled at a right angle, with gold-plated contact surfaces for enhanced durability and reliable connections. Designed for board-to-board connections, this connector ensures smooth mating thanks to cantilever type contacts and features a box-shaped housing with guide ribs to prevent distortion. Available in a wide range of circuits from 20 to 100, it is supplied in embossed tape for automatic mounting, supporting applications requiring high stability and RoHS compliance, with electrical ratings suitable for various industrial uses.
JST 20PSJMDSSG1TFLFSN Board-to-Board Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/50mΩ max, after testing/100mΩ max
- Insulation resistance: 50MΩ min
- Withstanding voltage: 100V AC/minute
- Material: Contact - Phosphor bronze, gold-plated; Housing - PA 6T, UL94V-0; Solder tab - Brass, tin-plated
- RoHS compliant
- Circuit options: 20, 30, 40, 50, 60, 70, 80, 100 circuits

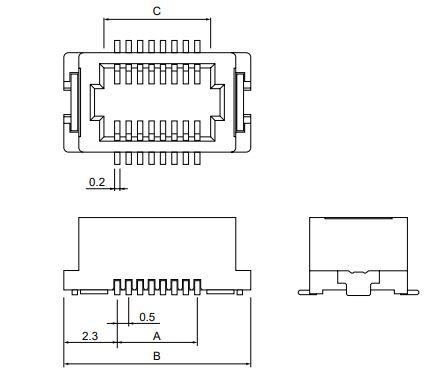

- Dimensions: Model-specific, e.g., 20 circuits: 45mm length, 94mm width, 57mm height
- Protection and mounting: Embossed tape packaging for automated assembly
- Compliance: Recognized by UL, RoHS compliant
Buy the JMD Connector 20PSJMDSSG1TFLFSN – Reliable Board-to-Board Connector for Industrial Applications
Enhance your industrial connections with this reliable 20-position surface mount connector featuring gold-plated contacts for durable and stable electrical connections. Designed with precision for automated mounting, it supports a range of circuits up to 100, ensuring versatility for your application. The robust box-shaped housing prevents distortion during mating, and the RoHS-compliant design guarantees environmental safety. Ideal for applications requiring high reliability and durability, this connector offers easy integration into your manufacturing process, streamlining assembly and ensuring consistent performance across your projects.
Buy JMD Connector 20PSJMDSSG1TFLFSN now and experience unmatched reliability and performance, perfect for automated mounting and industrial settings.
Frequently Asked Questions
Where can I buy JST 20PSJMDSSG1TFLFSN?
You can click on the BUY or RFQ button to purchase 20PSJMDSSG1TFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 20PSJMDSSG1TFLFSN?
You can download the 20PSJMDSSG1TFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 20PSJMDSSG1TFLFSN?
JST
