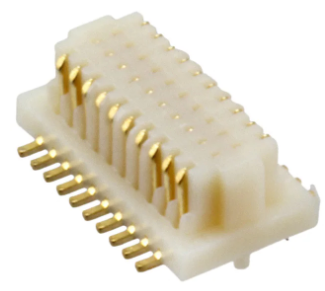

JST 20RJMCSGBTFS Surface Mount Connector Receptacle
A 20-position surface mount connector receptacle featuring center strip contacts with gold plating, designed for reliable electrical connections in electronic assemblies. This connector offers excellent contact resistance, rohs compliance, and easy assembly suited for various PCB configurations. Constructed with phosphor bronze contacts and UL94V-0 rated PA 6T housing, it ensures durability and stability under operational conditions. Ideal for compact electronic devices requiring secure and precise board-to-board connectivity with absorption misalignment capability and space-saving design.
JST 20RJMCSGBTFS Surface Mount Connector Receptacle Specifications:
- Contact Material: Phosphor bronze, nickel-undercoated, gold-plated
- Housing Material: UL94V-0 rated PA 6T
- Solder Tab: Brass, copper-undercoated, tin-plated (reflow treatment)
- Number of Positions: 20
- Stacking Height: 4.8 mm (with boss), 3.9 mm (without boss)
- Contact Resistance: Low, suitable for reliable electrical contact
- Current Rating: 0.5 A AC/DC
- Voltage Rating: 50 V AC/DC
- Temperature Range: -25°C to +85°C
- RoHS Compliance: Yes
- Supply Form: Embossed-tape for automated placement
- Dimensions: Length 4.8 mm, width 3.9 mm, height 2.5 mm
- Application: Board-to-board connections in electronic devices
Buy the JST Series JMC 0.5mm Pitch Surface Mount Receptacle: 20RJMCSGBTFS
Purchase the JST Series 20RJMCSGBTFS surface mount connector receptacle online today to experience reliable electrical connections in your electronic assemblies. With gold-plated contacts for excellent conductivity, RoHS compliance, and easy embossing-tape packaging, this component is ideal for space-efficient, precision PCB applications. Its durable construction with phosphor bronze contacts and UL94V-0 rated housing guarantees stability under various environmental conditions. Simplify your assembly process and enhance your device performance by ordering this high-quality, compact connector today.
Order your JST Series JMC 20RJMCSGBTFS today and ensure secure, space-saving connections in your electronic designs.
Frequently Asked Questions
Where can I buy JST 20RJMCSGBTFS?
You can click on the BUY or RFQ button to purchase 20RJMCSGBTFS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 20RJMCSGBTFS?
You can download the 20RJMCSGBTFS datasheet or visit the JST website for support.
Who is the manufacturer of 20RJMCSGBTFS?
JST
