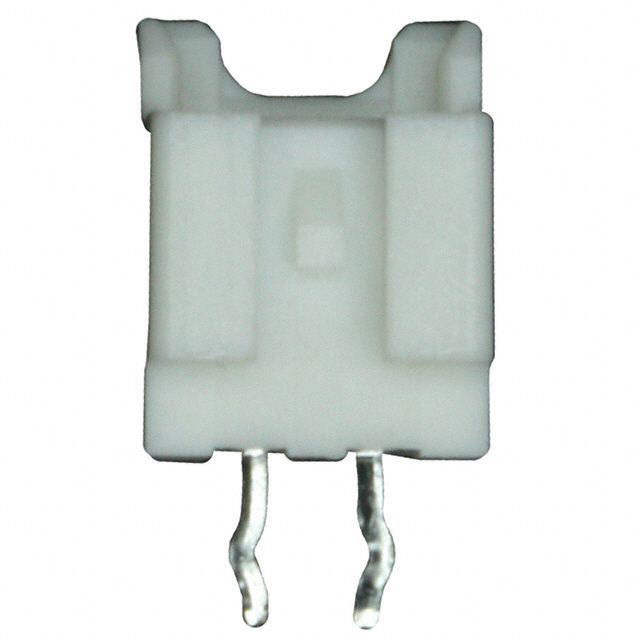

JST B02BPASKLFSN Connector Header
This high-quality PA series top-entry connector header features a 2.0mm pitch and through-hole mounting, making it ideal for complex wire harness applications. Designed with reliable male pins and a natural finish, it ensures secure connections in various industrial environments. The connector supports both top and side entry configurations for flexible assembly options, including versions with or without panel locks. Manufactured with durable materials like UL94V-0 rated PA66 housing and copper alloy contacts, it complies with RoHS standards for environmentally conscious design.
JST B02BPASKLFSN Connector Header Specifications:
- Material: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- Contact Resistance: Initial/ 10mΩ max., after environmental testing/ 20mΩ max.
- Voltage Rating: 250V AC, DC
- Current Rating: 3A AC, DC (AWG #22)
- Temperature Range: -25°C to +85°C
- Applicable wire: AWG #28 to #22
- Insulation Resistance: 1,000MΩ min.
- Withstanding Voltage: 800V AC/minute
- Number of Circuits: 2, 3, 4, 5, 6, 7, 8, 9, 10, 15
- Dimensions: A: 20-28mm, B: 74-34mm depending on model, packing: 1,000 pieces
- RoHS compliant
- Suitable for through-hole mounting with reliable insertion and retention features
Buy the JST 2023 – Reliable Connector Header for Industrial Applications
Purchase JST PA series connector headers online today to ensure robust, reliable connections in your industrial wiring projects. These high-quality, through-hole mounted connectors feature precise 2.0mm pitch male pins, durable UL94V-0 rated PA66 housing, and copper alloy contacts. Designed for flexibility, they support multiple configurations including top and side entry options, with or without panel locks. Ideal for complex wire harnesses, these connectors adhere to RoHS standards, ensuring environmentally safe and dependable performance in demanding industrial environments.
Get JST PA series connector header today—built for precision and long-lasting durability in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy JST B02BPASKLFSN?
You can click on the BUY or RFQ button to purchase B02BPASKLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B02BPASKLFSN?
You can download the B02BPASKLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B02BPASKLFSN?
JST
