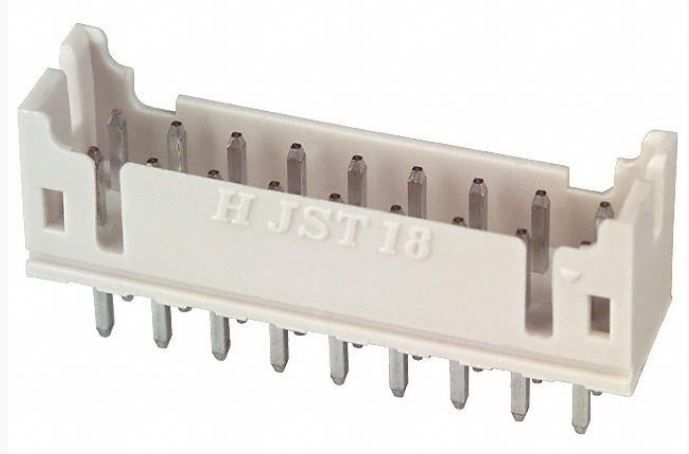

JST B18BPHDSSLFSN Pin Header Connector
This 18-position male pin header connector from the PHD Series offers robust through-hole mounting with solder termination and a secure detent lock. Its tin-plated contacts ensure reliable electrical connection and corrosion resistance. Designed for 250V applications, it accommodates wire gauges from AWG 28 to 22, making it ideal for high-density, low-profile circuit connections. The connector features a durable natural finish and complies with RoHS standards. Suitable for various electronic assemblies requiring dependable interconnects with efficient insertion and withdrawal.
JST B18BPHDSSLFSN Pin Header Connector Specifications:
- Number of positions: 18
- Contact Material: Tin-plated copper alloy
- Mounting Style: Through-hole
- Termination: Solder
- Voltage Rating: 250V AC/DC
- Current Rating: 3A
- Wire Gauge: AWG 28 to 22
- Contact Resistance: Initial/ 10mΩ max., After environmental testing/ 20mΩ max.
- Insulation Resistance: 1,000MΩ min.
- Temperature Range: -25°C to +85°C
- Material (Housing): Glass-filled nylon UL94V-0, natural (white)
- Finish: Tin-plated contacts
- RoHS Compliance: Yes
- Certifications: Recognized E60389, Certified LR20812
Buy the Buy JST PHD Series Connector Part Number B18BPHDSSLFSN Online
Order the JST PHD Series Pin Header Connector B18BPHDSSLFSN online today and enjoy dependable electrical connections suited for high-density circuit assemblies. Featuring through-hole mounting, solder termination, and a secure detent lock, it provides excellent mechanical stability. Compatible with 28-22 AWG wire gauges and rated for 250V, this connector is ideal for low-profile electronic designs. With RoHS compliance and a durable natural finish, it ensures long-lasting performance and easy integration into your product assembly processes.
Buy JST B18BPHDSSLFSN now and ensure reliable high-density connections with secure locking and easy solder termination.
Frequently Asked Questions
Where can I buy JST B18BPHDSSLFSN?
You can click on the BUY or RFQ button to purchase B18BPHDSSLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B18BPHDSSLFSN?
You can download the B18BPHDSSLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B18BPHDSSLFSN?
JST
