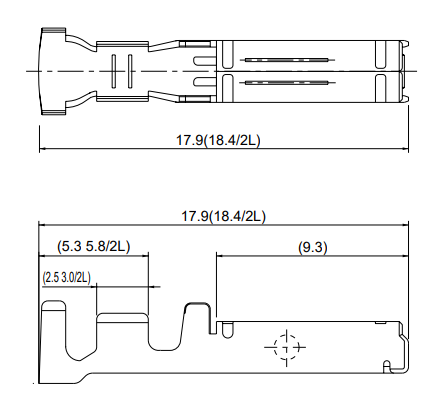

JST SF3F01TP20 Wire Connector
This JFA series wire-to-board receptacle contact is designed for easy installation with press fit contacts, supporting wire sizes from 24 to 20 AWG. Crafted from high-conductivity copper alloy with nickel-undercoated and gold-plated finishes, it offers excellent electrical performance and corrosion resistance. The contact features a 0.20 to 0.50 mm strip range, a current rating of up to 13A, and is compliant with RoHS2 standards. Suitable for applications requiring reliable connections on PC boards, it ensures durability and ease of assembly with top entry press fit design accommodating 2.4 to 3.4 mm PCB thickness.
JST SF3F01TP20 Wire Connector Specifications:
- Current rating: 13A (AC, DC)
- Voltage rating: 250 V
- Temperature range: -55°C to +105°C
- Applicable PC board thickness: 2.4 to 3.4 mm
- Wire size supported: #14 to #24 AWG
- Material: Copper alloy with nickel-undercoated and gold-plated finishes
- Contact type: Press fit
- Mounting: Top entry for PCB with press fit
- Standards: RoHS2 compliant, recognized E60389, R50133261
Buy the JFA Series 24-20 AWG Wire Connector – Reliable Press Fit for Industrial Applications
Enhance your electrical assembly with our JFA Series wire connector, supporting 24 to 20 AWG wires. Featuring high-conductivity copper alloy, nickel and gold finishes, and a robust press fit design, this connector ensures reliable, efficient connections. Its compact form is ideal for PCB mounting, with a voltage rating of 250 V and a temperature range from -55°C to +105°C, making it suitable for industrial environments. Order online now and enjoy fast delivery, quality assurance, and easy installation for your projects.
Order your JFA Series 24-20 AWG wire connector today and secure your projects with dependable press fit connections for industrial use.
Frequently Asked Questions
Where can I buy JST SF3F01TP20?
You can click on the BUY or RFQ button to purchase SF3F01TP20 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SF3F01TP20?
You can download the SF3F01TP20 datasheet or visit the JST website for support.
Who is the manufacturer of SF3F01TP20?
JST
