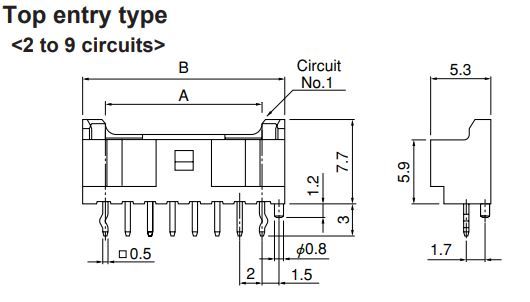

JST B05BPAEK1LFSN 5-Position Header Connector
This is a 5-position header connector with a 2.00mm pitch, designed for through-hole mounting. It features a shrouded construction with four walls and a kinked pin for secure soldering. The contact surface is tin-plated, and the connector body is natural-colored, with a blue finish. Suitable for electronic assembly and PCB connections, it provides reliable electrical contact in various industrial applications. The connector complies with RoHS standards, ensuring environmentally safe manufacturing and disposal.
JST B05BPAEK1LFSN 5-Position Header Connector Specifications:
- Number of Positions: 5
- Pitch: 2.00mm
- Mounting Type: Through-hole
- Connector Body Color: Natural with blue finish
- Contact Material: Copper alloy, tin-plated
- Contact Resistance: Initial / 10mΩ max, after environmental testing / 20mΩ max
- Voltage Rating: 250V AC/DC
- Current Rating: 3A
- Temperature Range: -25°C to +85°C
- RoHS Compliance: Yes
- Material: PBT (housing), Copper alloy (contacts), Tin-plated
- Number of Pins: 5
- Application: PCB connectors, electronic device wiring, industrial equipment
Buy the JST Series PAF: 5-Position 2.00mm Pitch Header Connector: B05BPAEK1LFSN
Secure your electronic projects today by ordering the JST Series PAF 5-Position 2.00mm Pitch Header Connector online. Designed for reliable PCB connections, this high-quality connector features tin-plated contacts for excellent conductivity, a natural-colored body with optional blue finish, and RoHS compliance, ensuring environmentally friendly manufacturing. Its through-hole mounting, durable construction, and precise pitch make it ideal for industrial, consumer, and automation applications. Get it now to ensure dependable, safe, and efficient electrical connections in your assembly operations.
Order your JST Series PAF 5-Position 2.00mm Pitch Header Connector today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy JST B05BPAEK1LFSN?
You can click on the BUY or RFQ button to purchase B05BPAEK1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B05BPAEK1LFSN?
You can download the B05BPAEK1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of B05BPAEK1LFSN?
JST
