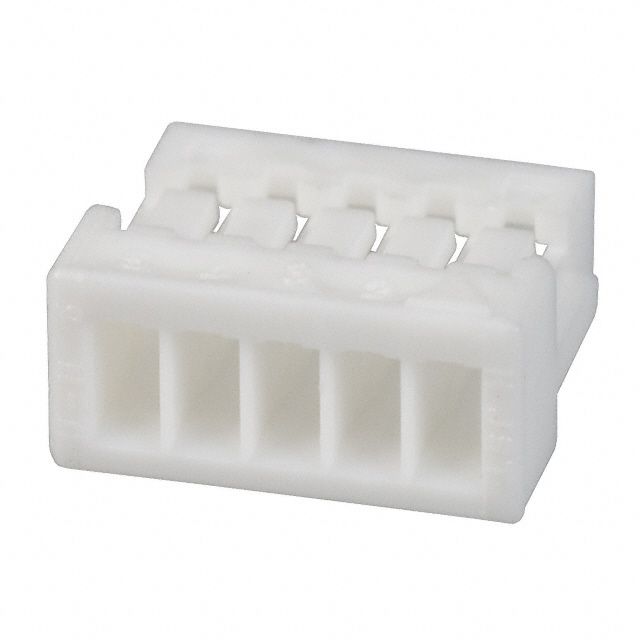

JST SHR05VS female connector housing
This female connector housing from the SH Series features 5 positions with a 1.0mm pitch. Crafted with precision, it is a free-hanging, crimp-style connector in natural color, designed for secure wire terminations. Compatible with AWG #28 to #32 wires, it ensures reliable electrical connection with a current rating of 1.0A and a voltage rating of 50V. Its compact, low-profile design is ideal for space-constrained applications, offering excellent insulation resistance and environmental durability. Suitable for automation, industrial, and electronic equipment, it complies with RoHS standards for eco-friendly use.
JST SHR05VS female connector housing Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after environmental testing/40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #28, insulation OD 0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated
- Housing Material: PBT, UL94V-0, natural
- Solder tab: Brass, copper-undercoated, tin-plated
- Durability: RoHS compliant
Buy the Buy JST Female Connector Housing Part Number SHR05VS Online
Purchase the JST series SHR05VS female connector housing online for secure and precise wire termination solutions. Suitable for automation, industrial, and electronic systems, this natural-colored, 5-position connector offers space-saving design and reliable electrical performance. Made with durable materials, it’s ideal for demanding environments, ensuring high insulation resistance and compliance with RoHS standards. Whether for manufacturing, repair, or prototype development, buy online and enjoy quick delivery, competitive pricing, and trusted quality to keep your projects running smoothly and efficiently.
Order your JST Series SHR05VS connector today and ensure reliable, space-saving wire terminations for your electronic projects.
Frequently Asked Questions
Where can I buy JST SHR05VS?
You can click on the BUY or RFQ button to purchase SHR05VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHR05VS?
You can download the SHR05VS datasheet or visit the JST website for support.
Who is the manufacturer of SHR05VS?
JST
