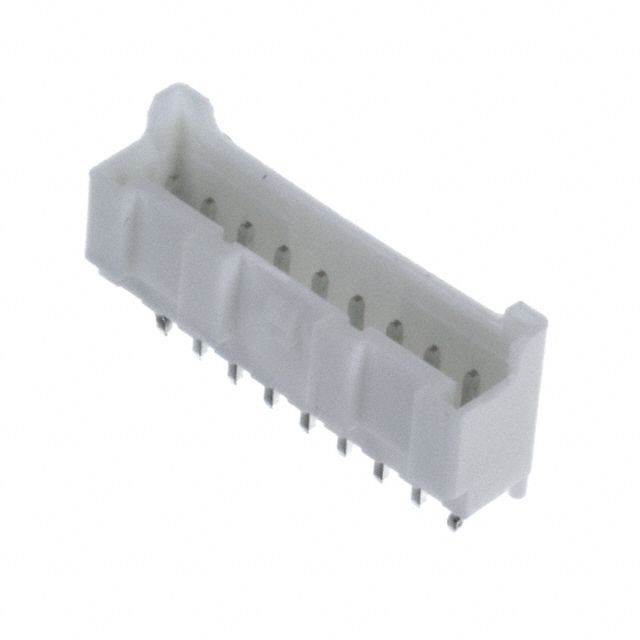

JST B09BPASK1LFSN Connector Header
This is a PA Series top-entry connector header with 9 positions, featuring male pins in a single row at 2.0mm pitch. Designed for through-hole mounting, it includes a boss for secure attachment, made of copper alloy with tin-plating, and encapsulated with UL94V-0 PA material. It is RoHS compliant, offering reliable electrical connections for industrial applications, with dimensions tailored for easy installation and robust performance in circuit assembly.
JST B09BPASK1LFSN Connector Header Specifications:
- Material: Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- RoHS compliance
- Number of positions: 9
- Pitch: 2.0mm
- Mounting Type: Through-hole, top entry, with boss
- Contact Resistance: Initial value/10mΩ max.
- Voltage Rating: 250V AC, DC
- Temperature Range: -25°C to +85°C
- Applicable Wire: AWG #28 to #22
- Dimensions: A=20mm, B=60mm, C=±0.2mm
- Solder tab: Copper alloy, tin-plated
- Certifications: RoHS compliant
Buy the JST B09BPASK1LFSN – Reliable Connector Header for Industrial Applications
Purchase the reliable JST B09BPASK1LFSN connector header online today. Featuring 9 positions, 2.0mm pitch, RoHS compliance, and durable construction, this top-entry through-hole connector ensures secure, high-quality electrical connections for industrial use. Its copper alloy contacts are tin-plated for longevity, with dimensions optimized for easy installation. Whether for automation, circuit assembly, or manufacturing, this connector provides robust performance, making it an essential component for reliable electronic systems in diverse industrial applications.
Order your JST B09BPASK1LFSN series connector header today and give your projects the dependable quality they deserve for secure electrical connections.
Frequently Asked Questions
Where can I buy JST B09BPASK1LFSN?
You can click on the BUY or RFQ button to purchase B09BPASK1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B09BPASK1LFSN?
You can download the B09BPASK1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of B09BPASK1LFSN?
JST
