JST B10PVHFBBLFSN Shrouded Connector Header
This VH Series 10-position shrouded connector header with a 3.96mm pitch is ideal for secure, reliable connections in electronic circuits. Crafted from copper alloy and tin-plated, it is RoHS compliant and designed for through-hole mounting with solder connections. Rated at 250V, the connector features a locking ramp for added stability and comes in a natural color, ensuring durability for consumer electronics, automation, and power supply applications. Its solid construction and safety features make it suitable for various signal, power, and output circuits requiring high reliability.
JST B10PVHFBBLFSN Shrouded Connector Header Specifications:
- Number of positions: 10
- Pitch: 3.96 mm
- Material: Copper alloy, tin-plated, reflow treatment
- Voltage rating: 250V
- Current rating: 10A AC/DC (AWG #16)
- Temperature range: -25°C to +85°C
- Contact resistance: Max 10mΩ initial, Max 20mΩ after environmental testing
- Insulation resistance: Min 1,000MΩ
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PCB thickness: 1.6 mm
- RoHS compliant
- Color: Natural

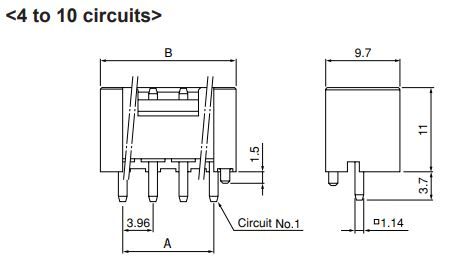

- Dimensions (approximate): Length 35.64 mm, Width 41.48 mm, Height 10 mm (model B10PVHFBBLFSN)
Buy the Buy JST VH Series 10-Position Connector Part Number B10PVHFBBLFSN Online
Purchase the JST VH Series 10-position shrouded connector header online today for reliable, secure connections in your electronic projects. Featuring a 3.96mm pitch and rated for 250V, this connector provides excellent durability and safety with a locking mechanism for stability. Made from RoHS-compliant copper alloy and tin-plated for optimal electrical conduction, it ensures high performance in consumer electronics, automation, and power applications. Easy to install with through-hole mounting, it’s designed for versatility and long-lasting use in demanding environments.
Get JST B10PVHFBBLFSN today—perfect for secure electronic connections with high durability and safety features.
Frequently Asked Questions
Where can I buy JST B10PVHFBBLFSN?
You can click on the BUY or RFQ button to purchase B10PVHFBBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B10PVHFBBLFSN?
You can download the B10PVHFBBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B10PVHFBBLFSN?
JST
