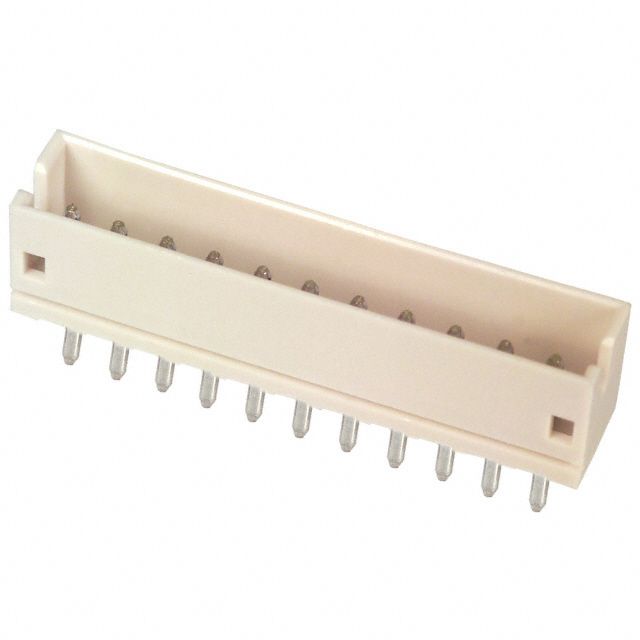

JST B11BZRLFSN Insulation displacement connector
The ZR connector series features a compact design with twin U-slot insulation displacement sections, ensuring reliable connections even in severe environmental conditions. It incorporates a 3-point grip and distortion-resistant construction, compatible with ZH crimp style connectors. It is rated for 0.7A current and 50V, suitable for applications with UL1571 wire, and operates within -25°C to +85°C. This connector offers high insulation resistance of 500MΩ, withstanding voltage of 500V AC, and supports wire ranges of AWG #30 and #28. Made from glass-filled PA 66 with phosphor bronze contacts, it is RoHS compliant.
JST B11BZRLFSN Insulation displacement connector Specifications:
- Current rating: 0.7A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: UL1571, AWG #30, #28, tin-coated, 7 strands
- Insulation O.D.: 0.7 to 0.8mm
- Applicable PC board thickness: 0.6 to 1.2mm, 1.6mm
- Material: Contact-Phosphor bronze, tin-plated; Housing-Glass-filled PA 66, UL94V-0
- RoHS compliant and recognized under E60389
- Standards: UL, CSA
Buy the JST Series ZR Connector: 1.5mm Pitch Disconnectable Insulation Displacement Connectors
Experience the durability and efficiency of the JST ZR Connector, designed with twin U-slots and 3-point grip construction for secure, reliable connections even in harsh environments. Rated for 0.7A and 50V, it supports UL1571 wires and has a wide temperature range from -25°C to +85°C. Made from high-quality materials like glass-filled polyamide and phosphor bronze, this connector ensures long-lasting performance. Easy to install with through-hole options, it is suitable for various electronics and PCB applications.
Buy JST ZR Connector now and experience reliable electrical connections with high environmental resistance and robust construction for demanding applications.
Frequently Asked Questions
Where can I buy JST B11BZRLFSN?
You can click on the BUY or RFQ button to purchase B11BZRLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B11BZRLFSN?
You can download the B11BZRLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B11BZRLFSN?
JST
