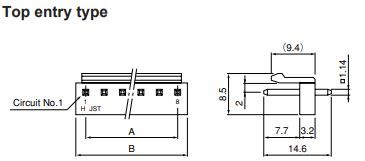

JST B2PVHRLFSN Shrouded Connector Header
This is a 2-position, shrouded connector header from the VH Series, designed for through-hole mounting with a locking ramp feature. It features a 3.96mm pitch, operates at up to 250V, and is color-coded red. The connector has one wall and is solder-style, providing a secure connection suitable for various electronic applications. Made of copper alloy with tin-plated reflow treatment, it complies with RoHS standards. This reliable connector is ideal for consumer electronics, power, and signal circuits, offering durability and ease of assembly.
JST B2PVHRLFSN Shrouded Connector Header Specifications:
- Current rating: 10A AC, DC (AWG #16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 10mΩ max, after testing / 20mΩ max
- Insulation resistance: 1,000MΩ minimum
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PCB thickness: 1.6mm
- Material: Copper alloy, tin-plated (reflow treatment)
- RoHS compliance
- Color: Red
- Model No.: B2PVHRLFSN
- Body Style: Solder type
- Number of positions: 2
- Pitch: 3.96mm
- Operating voltage: Up to 250V
Buy the JST Series VH Connector: 2-Position Shrouded Header for PCB B2PVHRLFSN
Enhance your electronic assembly with this reliable JST VH Series shrouded connector header. Featuring 2 positions, a 3.96mm pitch, and RoHS compliance, it ensures safe and secure connections for power and signal circuits. Designed for through-hole mounting with a solder style, it supports up to 250V and operates efficiently within -25°C to +85°C temperature ranges. Made from durable copper alloy with tin-plated treatment, this connector is ideal for consumer electronics and industrial applications. Purchase online today for fast delivery and quality assurance.
Order your JST Series VH Connector B2PVHRLFSN today and give your electronic projects the dependable, secure connection they deserve.
Frequently Asked Questions
Where can I buy JST B2PVHRLFSN?
You can click on the BUY or RFQ button to purchase B2PVHRLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B2PVHRLFSN?
You can download the B2PVHRLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B2PVHRLFSN?
JST
