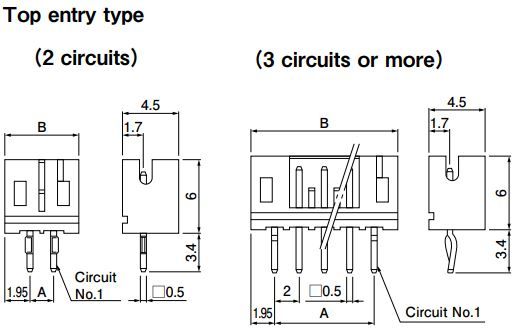

JST B3BPHKLLFSN Connector Header
This 3-position top-entry connector header with a 2.0mm pitch offers reliable, high-density connections ideal for printed circuit boards. Made from durable materials with tin-plated contacts, it supports up to 100V and accommodates wire gauges from AWG 24 to 32. Designed for surface mount applications, it features a compact profile, with a height of 8.0mm after mounting and a width of 4.5mm. Suitable for industrial electronic assemblies requiring stable and corrosion-resistant connections, meeting RoHS standards for eco-friendliness.
JST B3BPHKLLFSN Connector Header Specifications:
- Pitch: 2.0mm
- Number of Positions: 3
- Voltage Rating: 100V AC/DC
- Current Rating: 2A
- Wire Gauge: AWG 24 to 32
- Contact Resistance: Initial 10mΩ, after environmental testing 20mΩ
- Insulation Resistance: 1,000MΩ min.
- Withstanding Voltage: 800V AC
- Temperature Range: -25°C to +85°C
- Material: Phosphor bronze, tin-plated
- Height after mounting: 8.0mm
- Width: 4.5mm
- Compatibility: Surface mount, SMT
- RoHS Compliant
Buy the JST B3BPHKLLFSN – Reliable 2.0mm Pitch Connector Header for Industrial Applications
Discover the high-performance 3-position connector header with a 2.0mm pitch, perfect for compact, high-density electronic circuits. Featuring tin-plated contacts for enhanced durability and corrosion resistance, supporting voltages up to 100V and wire gauges from AWG 24 to 32, this surface mount component is ideal for industrial, consumer, and electronic device manufacturing. Its reliable design ensures long-term stability and RoHS compliance, making it an essential component for engineers seeking quality and efficiency in PCB connections.
Buy JST B3BPHKLLFSN now and experience unmatched reliability and performance for your electronic assembly needs.
Frequently Asked Questions
Where can I buy JST B3BPHKLLFSN?
You can click on the BUY or RFQ button to purchase B3BPHKLLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B3BPHKLLFSN?
You can download the B3BPHKLLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B3BPHKLLFSN?
JST
