JST BHMR04V Wire-to-wire connector
This BHM Series wire-to-wire connector is ideal for liquid crystal display backlight lamps and similar applications. Featuring a durable box-shaped housing and contact lances for secure connections, it supports four positions with a pitch ranging from 4.0 to 16.0mm depending on the model. Rated for 600V and handling wire sizes from AWG 28 to 22, it ensures reliable electrical performance in various environments. Made with RoHS-compliant materials, this connector offers robust and long-lasting connectivity for precise electronic wiring needs.
JST BHMR04V Wire-to-wire connector Specifications:
- Current rating: 1.0A AC, DC max.
- Voltage rating: 600V AC, DC max.
- Temperature range: -25°C to +85°C.
- Contact resistance: Initial/10mΩ max., after testing/20mΩ max.
- Insulation resistance: ≥1,000MΩ minimum.
- Withstanding voltage: 1,800V AC/minute.
- Applicable wire: AWG #28 to #22 / 0.08 to 0.33mm².
- Material: Phosphor bronze, tin-plated.
- Certifications: RoHS compliant.

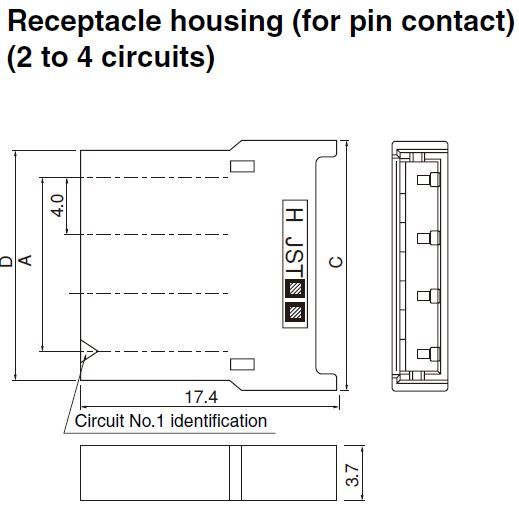

- Housing Types: Receptacle and socket housing, various sizes.
- Model dimensions vary with circuit number, maximum length approximately 16mm.
Buy the B H M Connector – Reliable LCD Backlight Connector for Industrial Applications
Order the B H M Connector today and ensure secure, high-quality electrical connections for LCD backlights and industrial applications. With its four-position design, rated at 600V, and compatibility with 28-22 AWG wires, this connector provides robust performance and easy installation. Made from RoHS-compliant materials, it ensures safety and durability in demanding environments. Available in various sizes and configurations, it’s the ideal choice for professional electronic assemblies requiring secure, precise connections. Purchase online now for quick delivery and outstanding reliability.
Buy B H M Connector now and experience unmatched reliability and performance for your electronic wiring needs.
Frequently Asked Questions
Where can I buy JST BHMR04V?
You can click on the BUY or RFQ button to purchase BHMR04V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BHMR04V?
You can download the BHMR04V datasheet or visit the JST website for support.
Who is the manufacturer of BHMR04V?
JST
