JST B5BPHKLFSN Header Connector
This top-entry header connector from the PH series offers a 2.00mm pitch with 5 positions, designed for high-density electrical connections on printed circuit boards. It supports through-hole mounting, including press-fit options, and features a reliable contact mechanism with fully shrouded headers and PCB retention. Made of brass with copper undercoating and tin plating, it ensures durability and low contact resistance. The connector complies with RoHS standards and supports application in various electronic devices requiring dependable, space-efficient connectors suitable for PCB assembly. Color options include natural ivory, black, blue, green, lemon yellow, or dark pink, matching different design requirements.
JST B5BPHKLFSN Header Connector Specifications:
- Pitch: 2.00mm
- Positions: 5
- Material: Brass, copper-undercoated, tin-plated (reflow treatment)
- Color: Natural (ivory), black, blue, green, lemon yellow, dark pink
- Mounting: Through-hole, press-fit or soldering options
- Operating Temperature Range: -25°C to +85°C
- Current Rating: 2A AC/DC per contact
- Voltage Rating: 100V AC/DC
- Insulation Resistance: 1,000MΩ minimum
- Contact Resistance: Initial 10mΩ max., after environmental testing 20mΩ max.
- RoHS compliant
- Applicable Wire Range: AWG #32 to #24
- Board Thickness Compatibility: 0.8 to 1.6mm
- Standard: Recognized under E60389, certified LR20812

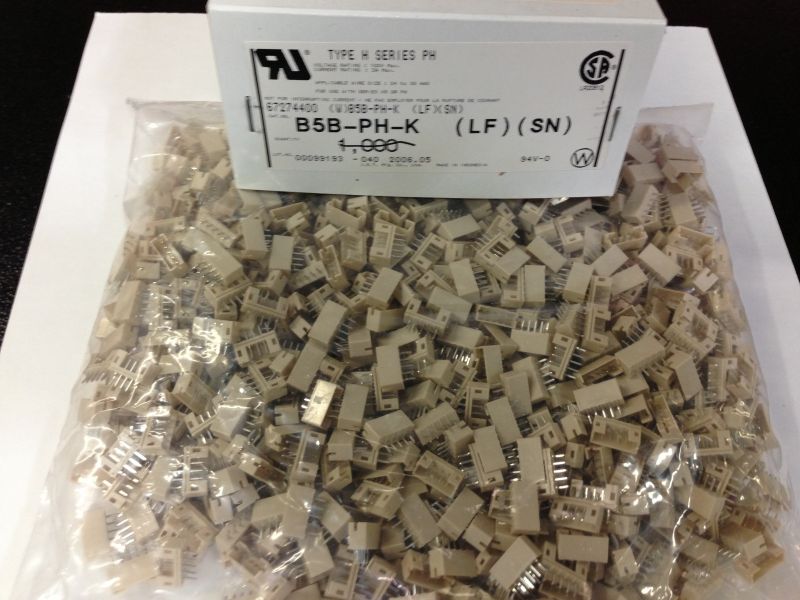

Buy the Buy JST PH Series Header Connector Part Number B5BPHKLFSN Online
Discover the high-quality JST PH Series Header Connector B5BPHKLFSN designed for reliable PCB connections. Featuring a 2.00mm pitch, 5 positions, and versatile mounting options, this connector ensures space-efficient and durable electrical connections in your projects. Made with corrosion-resistant materials, it supports high-current applications up to 2A per contact and maintains excellent insulation resistance. Suitable for various electronic devices, this RoHS-compliant connector combines technical reliability with ease of installation. Purchase online today to secure a dependable component for your manufacturing and repair needs.
Order your JST PH Series B5BPHKLFSN today and ensure reliable, space-efficient PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST B5BPHKLFSN?
You can click on the BUY or RFQ button to purchase B5BPHKLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B5BPHKLFSN?
You can download the B5BPHKLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B5BPHKLFSN?
JST
