JST B5BPHKLLFSN High-Density Header Connector
This 5-position through-hole header connector features a 2.0mm pitch, designed for high-density electronic connections. It provides reliable contact with a fully shrouded header and PCB retention mechanism. Made of copper alloy with tin-plated reflow treatment, it meets RoHS standards and is suitable for use in circuit assemblies requiring secure, durable connections. Its compact size and robust construction make it ideal for internal wiring and PCB integration, ensuring stable and vibration-resistant connections in various electronic applications.
JST B5BPHKLLFSN High-Density Header Connector Specifications:
- Pitch: 2.0 mm
- Number of positions: 5
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/ 10mΩ max, After testing/ 20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC
- Applicable wire: AWG #32 to #24
- PCB thickness: 0.8 to 1.6mm
- Material: Copper alloy, tin-plated (reflow treatment)
- RoHS compliant

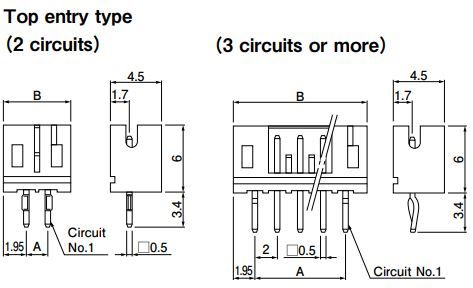

Buy the JST Series PH Connectors: High-Density 2mm Pitch Through-Hole Header S5BPHKLLFSN
Purchase the JST Series PH Connectors five-position through-hole header online to ensure reliable, high-density connection in your electronic projects. Crafted with durable tin-plated copper alloy, these connectors are RoHS compliant for environmentally conscious manufacturing. They feature a compact 2.0mm pitch, ideal for space-constrained PCB assemblies. The connector's robust construction offers excellent resistance to vibration and environmental stresses. Perfect for circuit boards, internal wiring, and electronic equipment, these connectors guarantee long-lasting durability, precise connection, and ease of installation, making them essential components for professionals and DIY enthusiasts.
Get JST Series PH Connectors S5BPHKLLFSN today—built for secure and reliable electronic connections with durable and RoHS-compliant materials.
Frequently Asked Questions
Where can I buy JST B5BPHKLLFSN?
You can click on the BUY or RFQ button to purchase B5BPHKLLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B5BPHKLLFSN?
You can download the B5BPHKLLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B5BPHKLLFSN?
JST
