JST B6PVHBLLFSN VH Connector
This VH Series 6-position connector header offers a reliable 3.96mm pitch and features shrouded, side entry, and top entry options suitable for PCB mounting. Made from UL94V-0 natural PA66 or glass-filled PET, it complies with RoHS standards and incorporates copper alloy contacts with tin plating for excellent conductivity and corrosion resistance. Designed for use in consumer electronics and power supply circuits, it supports up to 250V AC/DC and AWG #22 to #16 wires. The highly durable, compact connector ensures secure connection and easy assembly for various electronic applications.
JST B6PVHBLLFSN VH Connector Specifications:
- Current rating: 10A AC/DC (AWG #16)
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: initial value/10mΩ max, environmental testing/20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Material: Copper alloy, tin-plated, reflow treatment
- Housing: PA66 UL94V-0 or glass-filled PET UL94V-0
- RoHS compliant
- Dimensions (mm): 23.76 length, 7.86 width for model VHR-7N, with various models from 2 to 10 circuits
- Color: Blue (or other colors available, contact JST for specifics)
- Approvals: Recognized E60389, RoHS compliant

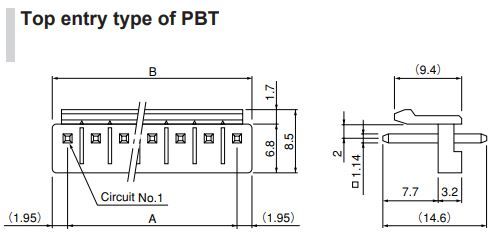

Buy the JST Series VH Connector: 6-Pin Power & Signal Connector Header with 3.96mm Pitch: B6PVHBLLFSN
Secure your electronic projects with the JST VH Series 6-position connector header featuring a 3.96mm pitch, rated for up to 250V. Constructed from RoHS-compliant materials, it offers excellent conductivity with copper contacts and a robust housing available in natural or color-coded options. Easy to assemble with secure mounting, this connector is ideal for power and signal applications in consumer electronics. Purchase online today for high-quality, reliable connections crafted for durability and long-term performance.
Get JST VH Series 6-pin connector header B6PVHBLLFSN today—built for precision, durability, and reliable electronic connections.
Frequently Asked Questions
Where can I buy JST B6PVHBLLFSN?
You can click on the BUY or RFQ button to purchase B6PVHBLLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B6PVHBLLFSN?
You can download the B6PVHBLLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B6PVHBLLFSN?
JST
