JST BH3BXH2LFSN 3-Position Connector Header
This 3-position connector header from the XH series features a 2.5mm pitch and a rated voltage of 250V, supporting both press-fit and soldering connection methods. Made with copper alloy and glass-filled PA 66, it maintains RoHS compliance and UL94V-0 flame retardancy. The connector handles a temperature range from -25°C to +85°C and has insulation resistance of at least 1,000 MΩ. Suitable for PCB mounting on boards up to 1.6mm thick, it offers reliable electrical performance with a current capacity of 3A and withstand voltage of 1,000V AC/minute, ideal for electronic and control applications.
JST BH3BXH2LFSN 3-Position Connector Header Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000 MΩ minimum
- Withstanding voltage: 1,000V AC per minute
- Applicable wire: AWG #30 to #22
- Applicable PCB thickness: up to 1.6mm
- Material: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Insulation Material: Glass-filled PA 66, UL94V-0
- RoHS compliance: Yes
- Contact resistance: Not specified but compliant with standard ratings

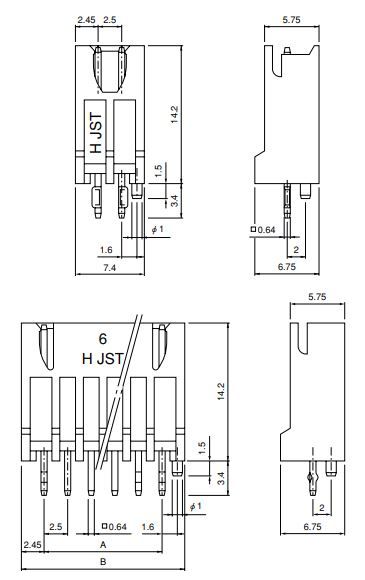

- Dimensions: Based on model, e.g., 7.4mm height, 25mm length, 7mm width
- Connector series: XH high box type
- Certifications: RoHS, UL recognized
Buy the JST Series XH 2.5mm Pitch Connector Header: BH3BXH2LFSN
Enhance your electronics assembly with this reliable 3-position connector header featuring a 2.5mm pitch and 250V rating. Made from durable copper alloy and glass-filled PA 66, it ensures optimal electrical performance and safety. Compatible with through-hole PCB mounting for boards up to 1.6mm thick, it supports both press-fit and solder connections. RoHS compliant and rated for -25°C to +85°C, this connector provides secure, high-quality connections ideal for industrial, control, and electronic device applications. Buy online today for fast delivery and trusted quality.
Order your JST Series XH 2.5mm Pitch Connector Header BH3BXH2LFSN today and ensure reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST BH3BXH2LFSN?
You can click on the BUY or RFQ button to purchase BH3BXH2LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BH3BXH2LFSN?
You can download the BH3BXH2LFSN datasheet or visit the JST website for support.
Who is the manufacturer of BH3BXH2LFSN?
JST
