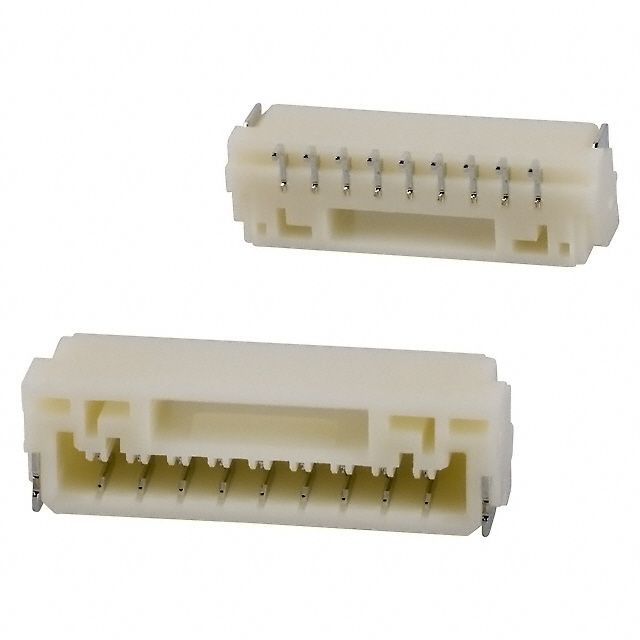

JST SM09BGHSTBLFSN Connector header
This surface mount right-angle connector header from the GH Series features 9 positions with a 1.25mm pitch, designed for easy solder termination. Suitable for 30-26 AWG wires, it operates at up to 50V AC/DC and can handle a current of 1.0A. Its secure locking ramp ensures reliable mating, with a robust phosphor bronze contact and UL94V-0 rated housing. Ideal for small electronics, it provides durable connection and is compliant with RoHS standards, making it suitable for a wide range of electronic applications requiring compact and dependable connectors.
JST SM09BGHSTBLFSN Connector header Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 100MΩ min.
- Contact resistance: Not specified
- Applicable wire: AWG #30 to #26, insulation O.D. 0.8 to 1.0mm
- Material: Phosphor bronze, tin-plated
- Housing: PBT, UL94V-0, natural (ivory)
- RoHS compliant
- Dimensions (mm): For example, model SM09BGHSTBLFSN: length varies by model, contact termination designed for reliable solder joint, locking ramp improves secure connection, rated voltage 50V, current 1.0A, operating temperature -25°C to +85°C
Buy the Buy JST Connector Accessories Part Number SM09BGHSTBLFSN Online
Purchase the JST SeriesG connector header online today to enhance your electronic projects with a reliable, compact, and RoHS-compliant connection solution. Featuring 9 positions and a 1.25mm pitch, this surface mount connector provides secure soldered connections with a locking ramp for extra stability. Suitable for 30-26 AWG wires and rated for 50V, it is ideal for small electronics and tight spaces. Ensure durability and high performance in your designs by ordering now for fast delivery and consistent quality standards.
Order your JST SeriesG Series SM09BGHSTBLFSN connector today and ensure your electronics are equipped with reliable, easy-to-assemble, high-quality connections.
Frequently Asked Questions
Where can I buy JST SM09BGHSTBLFSN?
You can click on the BUY or RFQ button to purchase SM09BGHSTBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM09BGHSTBLFSN?
You can download the SM09BGHSTBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM09BGHSTBLFSN?
JST
