JST BM15BPASS1TFTLFSN Connector Header
This 15-position, 2.0mm pitch surface-mount connector header provides a reliable, secure connection for wire harnesses in electronic applications. It features four-wall shielding for durability, a locking ramp to ensure firm attachment, and a mounting boss for ease of installation. Constructed with tin-plated, natural finish components, it complies with RoHS standards. The connector's design supports high stability in compact spaces, making it suitable for complex wiring and automation systems. It offers excellent electrical performance with a current rating of 3A and voltage of 250V, suitable for various electronic device assemblies.
JST BM15BPASS1TFTLFSN Connector Header Specifications:
- Number of Positions: 15
- Pitch: 2.0mm
- Mounting Type: Surface-mount (SMT)
- Material (Post): Copper alloy, copper-undercoated, tin-plated
- Housing Material: Glass-filled PBT, UL94V-0, natural (white)
- Electrical Rating: 3A AC/DC, 250V
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/ 10mΩ max, Environmental/ 20mΩ max
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 800V AC for 1 minute
- RoHS compliant

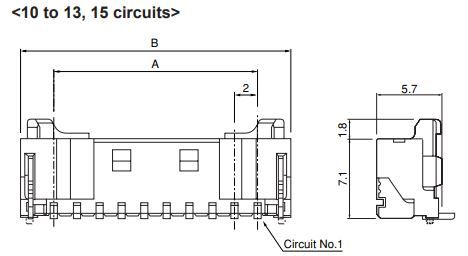

- Dimensions (A x B): 20mm x 74mm
- Applicable Wire: AWG #28 to #22
- Finish: Tin-plated
- Certifications: RoHS, recognized E60389
Buy the Buy JST Connector Header Part Number BM15BPASS1TFTLFSN Online
Purchase the JST connector header BM15BPASS1TFTLFSN online today to ensure secure, stable electrical connections in your electronic projects. This 15-position, 2.0mm pitch SMT connector features four-wall shielding, a locking ramp for firm attachment, and a mounting boss for easy installation. Made with high-quality, RoHS-compliant materials, including tin-plated copper components, it offers excellent electrical performance with a rated current of 3A and voltage of 250V. Ideal for automation, complex wiring, and compact device assemblies, this connector guarantees reliability and long-term durability.
Get JST connector header BM15BPASS1TFTLFSN today—built for precision, durability, and reliable electronic connections in modern device manufacturing.
Frequently Asked Questions
Where can I buy JST BM15BPASS1TFTLFSN?
You can click on the BUY or RFQ button to purchase BM15BPASS1TFTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM15BPASS1TFTLFSN?
You can download the BM15BPASS1TFTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM15BPASS1TFTLFSN?
JST
