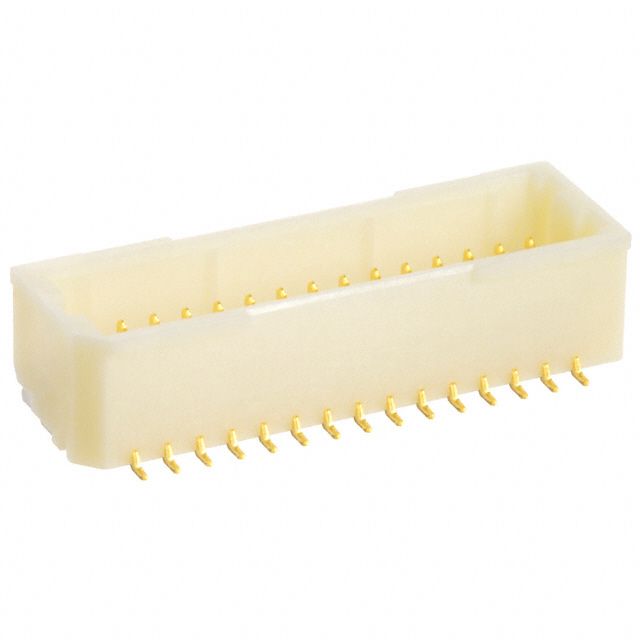

JST BM30BSRDSGTFLFSN Surface-mount connector header
The 30-position surface-mount shrouded connector header features a 1.00mm pitch with male pins and a four-wall design for secure, high-density electronic assemblies. It is designed for soldering applications with a push-pull mechanism that ensures reliable connection, enhancing safety and ease of use. Constructed from high-quality materials including phosphor bronze for contacts and UL94V-0 rated PA for insulators, this connector is RoHS compliant. Its compact profile and robust construction make it ideal for modern electronic projects requiring precise vertical mounting.
JST BM30BSRDSGTFLFSN Surface-mount connector header Specifications:
- Pitch: 1.00mm
- Number of Poles: 30
- Material: Phosphor bronze contacts, UL94V-0 PA insulators, brass solder tabs
- Finish: Gold-plated contacts, tin-plated solder tabs
- RoHS Compliant
- Type: Surface-mount, shrouded connector header
- Design: Four-wall for stability, push-pull mechanism for secure connection
- Applicable Wire: Compatible with AWG #32 to #28, insulation diameter 0.4 to 0.8mm
- Reel Quantity: 1,500 pieces
- Operating Voltage: 50V AC/DC
- Current Rating: 1.0A
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 100MΩ min.
- Contact Resistance: Initial 20mΩ max., after environmental testing 40mΩ max.
- Withstanding Voltage: 500V AC/minute
Buy the JST 30-Position Connector – Reliable Surface-Mount for Industrial Applications
Secure yours online today and enjoy quick delivery of this high-quality, RoHS-compliant surface-mount connector header designed for reliable, compact, and high-density electronic assemblies. Perfect for engineers and manufacturers seeking a durable, high-performance connection solution, it features a push-pull mechanism ensuring safe engagement and separation. With detailed specifications covering materials, dimensions, and electrical ratings, this connector guarantees compatibility for a wide range of applications. Enhance your project’s reliability by ordering this essential component today.
Buy JST 30-Position Connector now and experience unmatched reliability and performance in electronic assembly and high-density board designs.
Frequently Asked Questions
Where can I buy JST BM30BSRDSGTFLFSN?
You can click on the BUY or RFQ button to purchase BM30BSRDSGTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM30BSRDSGTFLFSN?
You can download the BM30BSRDSGTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM30BSRDSGTFLFSN?
JST
