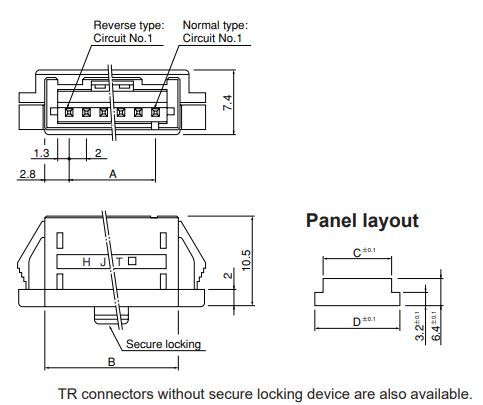

JST BU03PTRPHLFSN IDC Connector
This is a JST TR Series 3-position IDC connector featuring a gray plastic housing with tin-plated contacts. Suitable for up to 100V applications, it offers reliable electrical connections and compatibility with 26 AWG wiring. Designed for easy installation, this connector supports high-density packaging and ensures stable performance in electronic and industrial applications. Its robust construction makes it ideal for harness assemblies, PCB connections, and wire-to-wire interface requirements, combining durability and precision in a compact form factor.
JST BU03PTRPHLFSN IDC Connector Specifications:
- Number of Circuits: 3
- Color: Gray
- Housing Material: PA 66, UL94V-0
- Contact Material: Phosphor bronze, tin-plated
- Voltage Rating: 100V AC/DC
- Wire Compatibility: 26 AWG
- Temperature Range: -25°C to +85°C
- RoHS Compliance: Yes
- Length: 29.6 mm (for 3 circuits)
- Width: 9.95 mm
- Current Rating: 1.4 A per circuit
- Insulation Resistance: 4,000 MΩ min
- Withstanding Voltage: 800V AC/min
- Applicable Wire Insulation: 0.9 to 1.0 mm
Buy the JST 03PTR – Reliable IDC Connector for Industrial Applications
Purchase the JST IDC connector online today to ensure high-quality, reliable electrical connections for your electronic projects. Designed with a durable gray housing and tin-plated contacts, this connector is compatible with 26 AWG wire, providing efficient and stable performance. Ideal for harness assemblies, PCB applications, and wire-to-wire interfaces, it combines easy installation with robust construction. Order now and enhance your industrial or electronic assembly with a trusted connector that guarantees durability and precise connectivity for your specific needs.
Get JST 03PTR today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy JST BU03PTRPHLFSN?
You can click on the BUY or RFQ button to purchase BU03PTRPHLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BU03PTRPHLFSN?
You can download the BU03PTRPHLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BU03PTRPHLFSN?
JST
