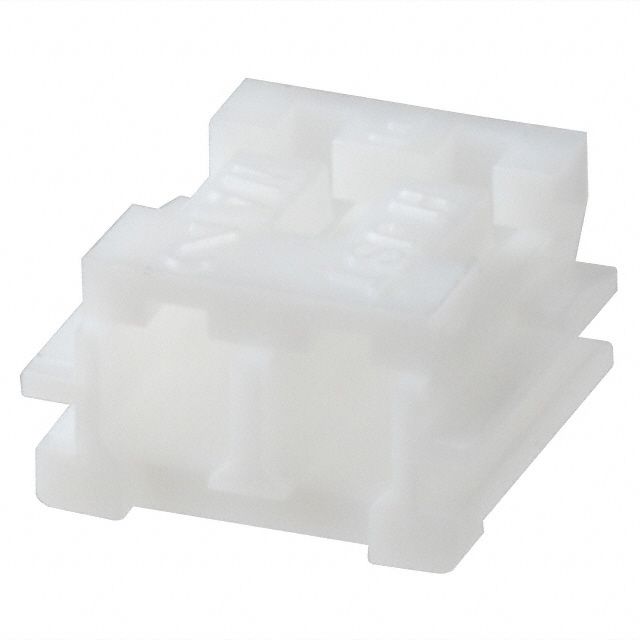

JST EHR2 2-Position Crimp Connector
The connector housing is part of the EH series, designed for a 2-position configuration with a 2.5mm pitch. It features a female socket, is suitable for free hanging installation, and is crimp-style with a natural finish. This connector is highly reliable for secure electrical connections, supporting up to 3A current at 250V, with a temperature range of -25°C to +85°C. Ideal for internal wiring in electronic devices, it provides ease of assembly, polarization guides, and RoHS compliance for environmentally sustainable applications.
JST EHR2 2-Position Crimp Connector Specifications:
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Applicable wire: AWG #32 to #22
- PC board thickness: 0.8 to 1.6mm
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 800V AC/minute
- Material: Phosphor bronze, tin-plated
- Connector type: Female socket
- Pitch: 2.5mm
- Mounting style: Free hanging
- RoHS compliant
Buy the JST EHR2 – Reliable 2.5mm Pitch Connector for Industrial Applications
Secure your electronic connections easily with this 2-position 2.5mm pitch connector. Designed for high reliability, it supports current up to 3A at 250V, with a temperature range of -25°C to +85°C. Suitable for PCB mounting, crimp-style termination, and free hanging installation, it complies with RoHS standards. Its compact size and polarization guides ensure ease of assembly for various industrial and electronic applications. Enhance your wiring with the trusted quality of this flexible and durable connector, available for quick online purchase today.
Buy JST EHR2 connector now and experience unmatched reliability and performance in your electronic wiring projects.
Frequently Asked Questions
Where can I buy JST EHR2?
You can click on the BUY or RFQ button to purchase EHR2 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part EHR2?
You can download the EHR2 datasheet or visit the JST website for support.
Who is the manufacturer of EHR2?
JST
